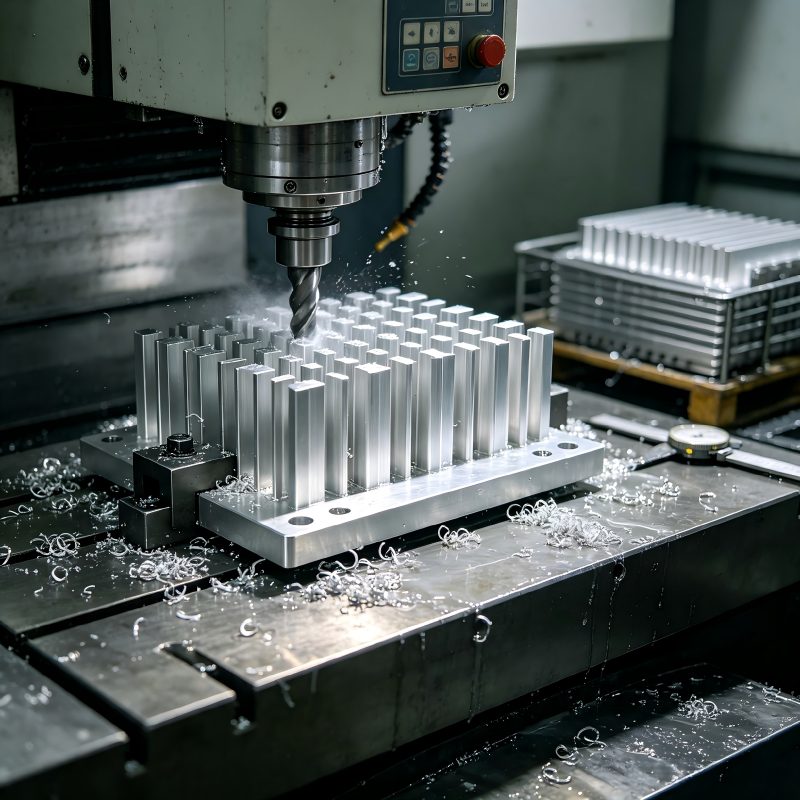

Leading Aluminum Heat Sink Service Manufacturer

Lingyufab (Shanghai Lingyu Industrial Co., Ltd.), established in 2003, stands out as a premier service manufacturer of aluminum heat sinks. With over 20 years of experience in precision metal fabrication and thermal management, we offer comprehensive solutions from 1-piece prototyping to large-scale production. Our facility is equipped with advanced CNC machining centers, extrusion lines, stamping presses, and surface finishing capabilities. As a Mitsubishi Electric certified core supplier adhering to Japanese quality standards, we serve clients across power electronics, LED, automotive, and renewable energy sectors.

China Aluminum Heat Sink Manufacturer

As a China-based manufacturer located in Shanghai, Lingyufab leverages the region's robust supply chain and skilled workforce to produce high-quality aluminum heat sinks at competitive prices. We adhere to ISO 9001:2015, ISO 14001, and hold TÜV CE certification. Our in-house production eliminates outsourcing costs, delivering 15 to 20 percent cost savings to customers. We support 1-piece samples, 100-piece pilot runs, and high-volume mass production with monthly output exceeding 8000 units.

Aluminum Heat Sink Techspecs

Our aluminum heat sinks are engineered to precise thermal and mechanical specifications. Materials include 5052 and 6061 aluminum alloys for optimum thermal conductivity and machinability. Fin densities range from 0.5mm to 5.0mm fin spacing depending on application. Dimensional tolerances are held to plus or minus 0.05mm for critical features. Standard finish is natural anodized aluminum with clear protective layer. Custom finishes include black anodized and chemical conversion coating. Thermal performance is validated through CFD modeling and empirical testing. Every batch is backed by Mill Test Certificates ensuring full material traceability.

Custom Aluminum Heat Sink Parts

Lingyufab specializes in producing custom aluminum heat sink parts including extruded profile heat sinks with complex fin arrays, CNC machined heat sinks with precision mounting features, folded fin heat sinks for high volume applications, pin fin heat sinks for effective natural convection, and heat sinks with pre-installed thermal interface materials. Each part is tailored to your thermal and mechanical requirements, with provisions for fan mounting, surface mounting, and thermal interface attachment. Our engineering team provides upfront technical support, including thermal simulation, CFD modeling, and cost-reduction recommendations. We support reverse engineering services. If you have a physical sample without drawings, we can 3D scan, model, and generate production-ready engineering prints. Whether you need a single prototype or thousands of units, we deliver consistent quality with zero MOQ for prototyping stages.

Aluminum Heat Sink Applied in Sheet Metal Fabrication

What truly sets Lingyufab apart is our ability to integrate the full spectrum of metal fabrication processes, including CNC machining, extrusion, stamping, and surface finishing, into a seamless manufacturing workflow for aluminum heat sinks. Rather than outsourcing individual steps to multiple vendors, we manage everything in-house, ensuring tighter quality control, faster lead times, and consistent communication throughout the entire production cycle. With our integrated approach, we can combine heat sink production with sheet metal enclosures to deliver complete thermal management solutions. The result is a streamlined, cost-effective solution that performs reliably in the field.

What is Aluminum Heat Sink?

An aluminum heat sink is a thermal management component fabricated from aluminum alloys through processes including CNC machining, extrusion, stamping, and surface finishing. It is designed to dissipate heat from electronic components such as CPUs, power transistors, IGBT modules, and LEDs to the surrounding air, ensuring reliable operation and extended component life. At Lingyufab, we manufacture heat sinks strictly to customer 2D prints in PDF, DWG, and DXF formats and 3D CAD models in STEP, IGES, and SolidWorks formats, ensuring 100 percent build-to-print execution.

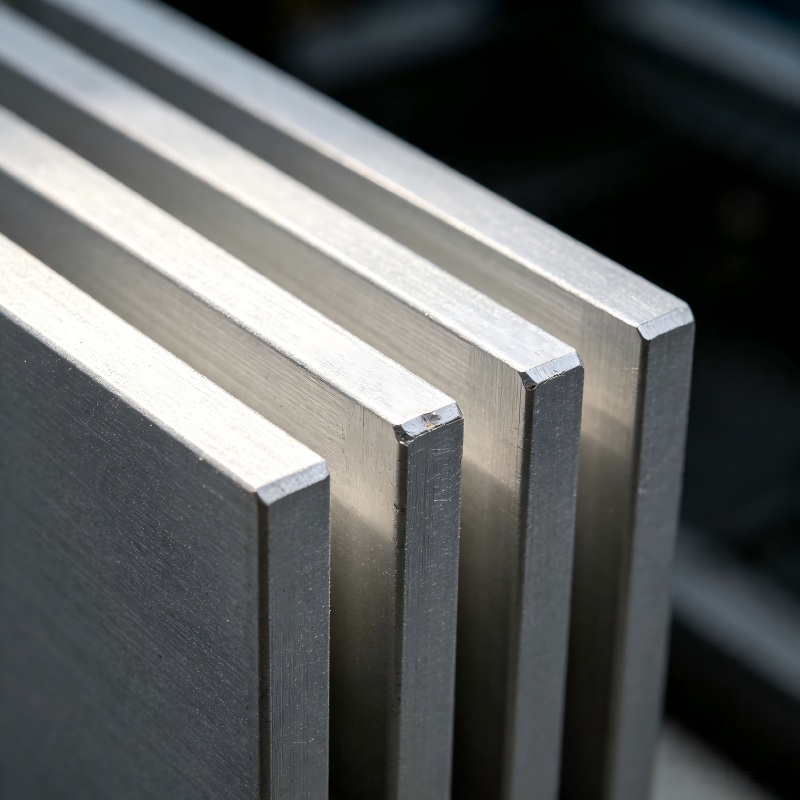

Features of Aluminum Heat Sinks

1. Excellent thermal conductivity from aluminum alloys

2. Optimized fin geometry for maximum surface area and airflow

3. Precision machining for accurate mounting and thermal contact

4. Multiple fabrication options including extrusion, machining, stamping, and folding

5. Natural and black anodized finishes for corrosion resistance and thermal emissivity

6. Custom features including fan mounting and thermal interface attachment

7. Full material traceability with Mill Test Certificates for every batch

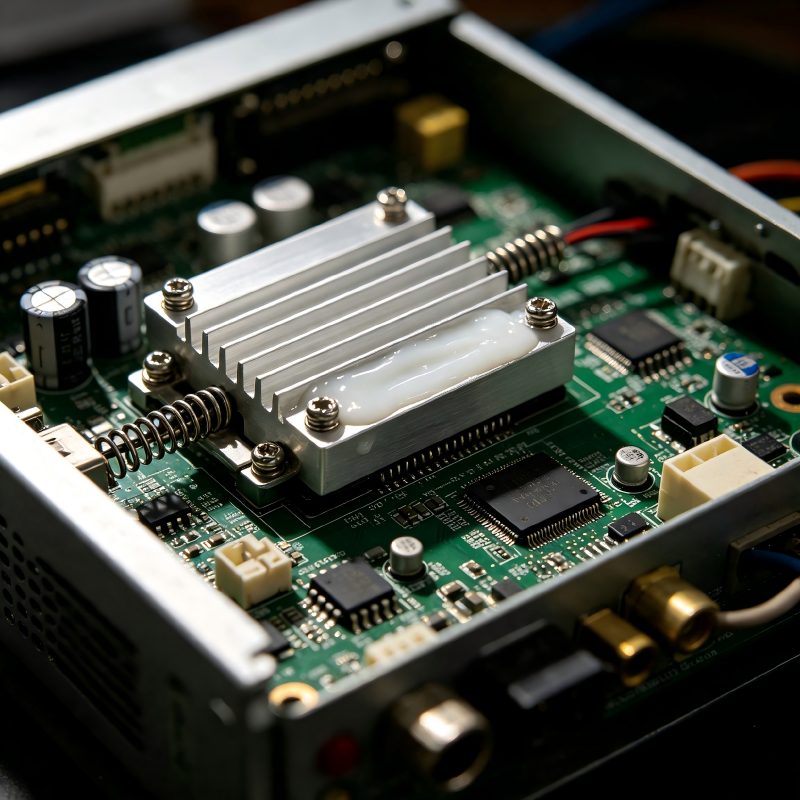

Applications of Aluminum Heat Sinks

These heat sinks are deployed in power electronics for IGBT and MOSFET cooling, LED lighting for driver and module thermal management, consumer electronics for CPU and GPU heat dissipation, automotive electronics for ECU and power module cooling, and renewable energy for inverter and battery thermal management. They efficiently transfer heat from power components to ambient air, ensuring reliable operation and extended component life. Lingyufab serves OEM clients across power electronics, LED, automotive, and renewable energy sectors.

Aluminum Heat Sink Guide for Sheet Metal Assembly

When integrating an aluminum heat sink into an assembly, consider thermal interface material selection and application, airflow direction and forced convection requirements, mounting pressure to ensure proper thermal contact, and system-level thermal management. Recommended design practices include optimizing fin height and spacing, ensuring proper airflow across fin surfaces, and providing appropriate mounting provisions. Our engineering team provides assembly drawings, thermal simulation results, and installation recommendations to streamline your final integration.

Aluminum Heat Sink Material

1. 6061 Aluminum Alloy: Good thermal conductivity with excellent machinability and corrosion resistance, ideal for precision CNC machined heat sinks

2. 5052 Aluminum Alloy: Excellent corrosion resistance with good formability, ideal for stamped and folded heat sinks

3. 6063 Aluminum Alloy: Optimized for extrusion, ideal for high-volume extruded profile heat sinks

4. 1050 Aluminum Alloy: High purity with exceptional thermal conductivity, ideal for high performance thermal applications

Aluminum Heat Sink Accuracy

1. Standard linear tolerance: plus or minus 0.13mm; Precision tolerance: plus or minus 0.05mm

2. Fin geometry tolerance: plus or minus 0.1mm for spacing and thickness

3. Flatness tolerance: plus or minus 0.05mm for mounting surfaces

4. Verification equipment includes CMM coordinate measuring machines, surface profilometers, and thermal performance testing equipment

How to Control Quality for Aluminum Heat Sinks?

01. Incoming Material Control: Verify material composition, hardness, and thermal properties with MTC certificates

02. In-Process Control: Real-time online inspection following SOPs with dimensional verification and surface finish checking

03. Final Inspection: Comprehensive dimensional verification, surface finish inspection, flatness testing, and thermal performance validation

04. Pre-Shipment Control: Final quality review, packaging integrity check, and complete quality documentation

What parts can be manufactured by Aluminum Heat Sinks?

1. Extruded profile heat sinks with complex fin arrays

2. CNC machined heat sinks with precision mounting features

3. Folded fin heat sinks for high volume applications

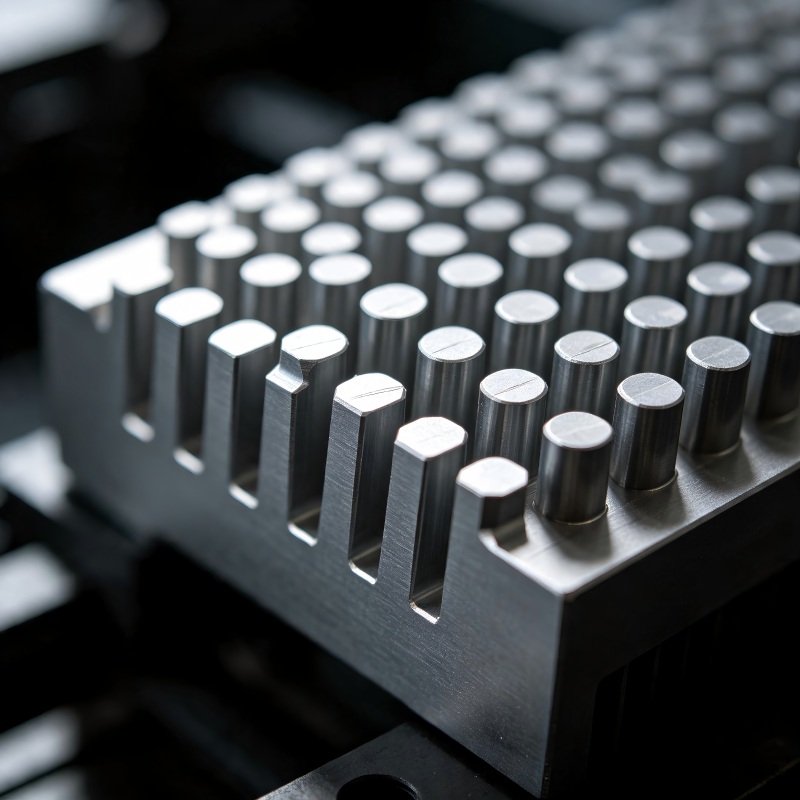

4. Pin fin heat sinks for effective natural convection

5. Heat sinks with pre-installed thermal interface materials

6. Custom sizes for OEM thermal management applications

7. Reverse engineering of physical samples without existing drawings

Aluminum Heat Sink Manufacturer

Lingyufab (Shanghai Lingyu Industrial Co., Ltd.) is a certified manufacturer established in 2003 with over 20 years of precision fabrication experience. We hold ISO 9001:2015, ISO 14001, and TÜV CE certifications. We are a Mitsubishi Electric certified core supplier. Monthly production exceeds 8000 units, covering 1-piece prototypes, 100-piece pilot runs, and high-volume mass production. We support OEM and ODM manufacturing with zero MOQ for prototyping.

Aluminum Heat Sink FAQ

A: 5052, 6061, 6063, and 1050 aluminum alloys depending on required thermal conductivity and fabrication method.

A: Yes, we customize any size within our equipment capacity. Provide your 2D prints or 3D CAD files for a precise quote.

A: Natural anodized, black anodized, chemical conversion coating, and raw aluminum.

A: Zero MOQ for prototyping. We support 1-piece samples, 100-piece pilot runs, and high-volume mass production.

A: Yes, we can add custom mounting features for fan and thermal interface attachment during production.

A: 15 to 20 working days for prototypes and 25 to 35 days for bulk orders. Expedited options available.

A: Yes, we provide CFD modeling and empirical testing to validate thermal performance based on your specifications.

A: Yes, every batch includes Mill Test Certificates with full material traceability. Third-party testing is also supported.
