Laser Welding

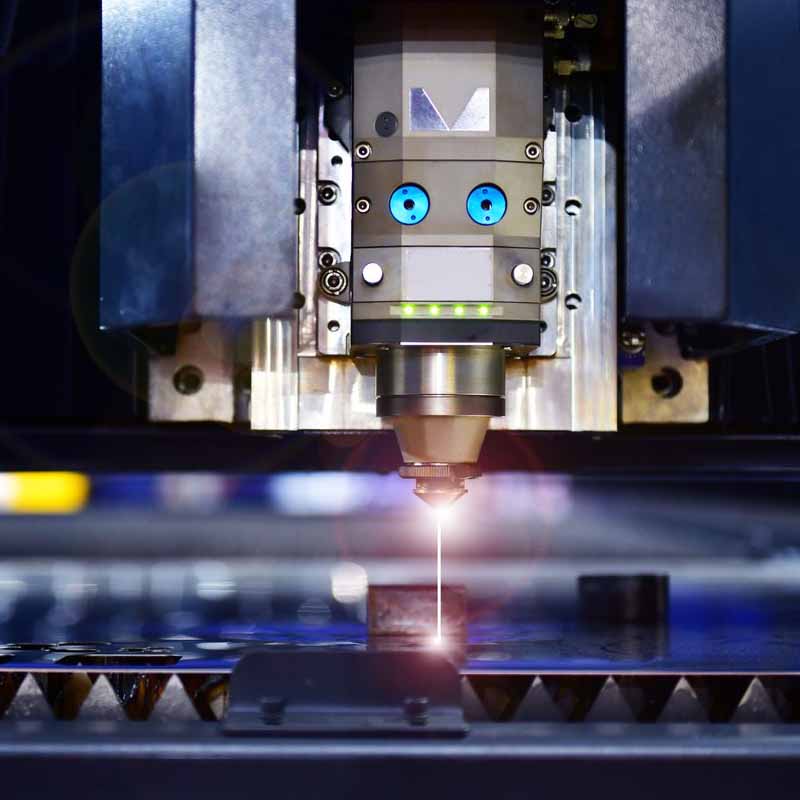

China Laser Welding Manufacturer
As a premier China Laser Welding Manufacturer, Lingyufab delivers advanced fiber laser welding and automated assembly solutions to OEM clients worldwide. Equipped with multi-axis CNC laser gantries, 6-axis robotic welding cells, and high-power handheld fiber laser units (1 kW to 12 kW+), Lingyufab seamlessly bridges the gap between intricate prototypes and high-volume sheet metal fabrication.OEM & ODM Manufacturing: Custom parts built strictly to your 2D prints and 3D CAD designs (STEP, IGES, DXF).High Efficiency: Up to $10\times$ faster than conventional TIG welding, drastically reducing lead times and unit costs.Global Shipping & Logistics: Certified export packaging with end-to-end quality documentation.
Precision Fiber Laser Processing Capabilities
Lingyufab operates multi-kW fiber laser welding systems calibrated specifically for high-tolerance custom sheet metal fabrication. Our advanced multi-axis workstations combine continuous wave and pulsed beam capabilities to deliver minimal thermal impact and structural joint integrity across varying sheet gauges.
| Technical Parameter | Lingyufab Processing Capability | Engineering Benefit |
|---|---|---|
| Laser Source Output | 1.0 kW - 12.0 kW Continuous Wave (CW) / Pulse | Handles ultra-thin foils up to heavy structural sheets |
| Positioning Accuracy | ±0.02 mm to ±0.05 mm | Meets tight tolerances for medical, aerospace, and electronics |
| Heat-Affected Zone (HAZ) | 0.1 mm - 0.5 mm | Prevents sheet metal warping; eliminates manual post-straightening |
| Weld Depth Ratio | Up to 10:1 (Depth-to-Width) | High structural joint strength in a single high-speed pass |
| Max Processing Speed | Up to 8.0 m/min | Scalable output for large-volume OEM production orders |
| Shielding Gas Options | High-purity Nitrogen (N2), Argon (Ar), Helium (He) | Delivers oxidation-free, bright, anti-corrosive weld seams |

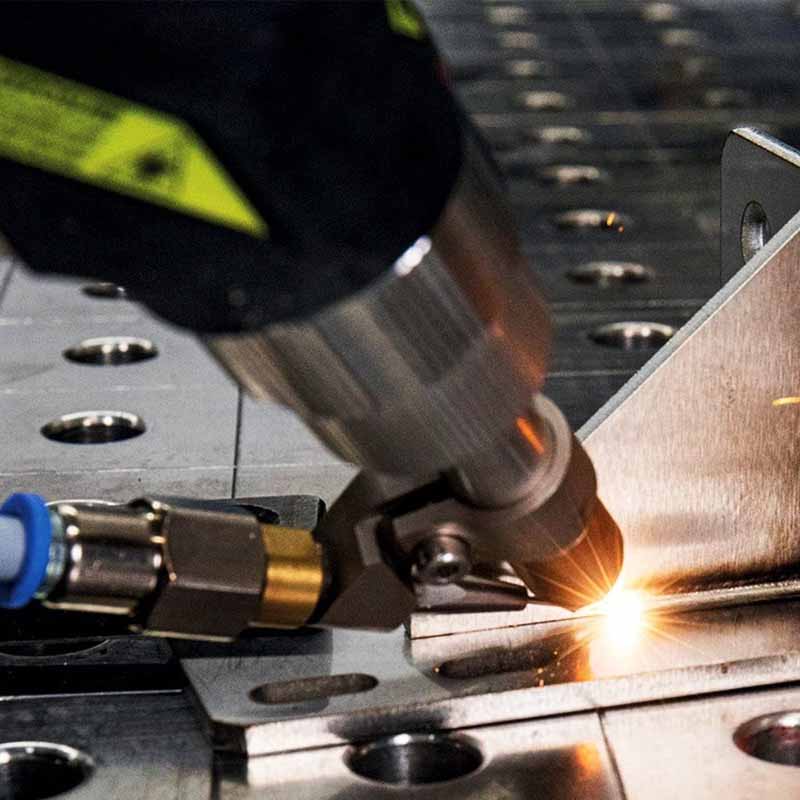

What is Laser Welding?
Laser welding is an advanced thermal joining process that utilizes a high-energy density, coherent light beam to fuse metal components. By concentrating laser light onto a microscopic focal point ($\sim 0.2\text{ mm} - 0.6\text{ mm}$), Lingyufab achieves deep penetration welds with extremely low total heat input.Laser welding operates in two primary modes depending on power density:Conduction Mode: Ideal for thin-gauge sheet metal requiring aesthetic, smooth surface seams.Keyhole (Deep Penetration) Mode: Creates narrow, deep weld beads with depth-to-width ratios up to $10:1$ for high-strength structural joints.
Industrial Applications of Laser Welding
Lingyufab delivers high-efficiency fiber laser welding across major manufacturing sectors, driving precision and performance. In telecommunications, our laser welding creates durable outer structural shells and hermetically sealed, EMI-shielded server cabinets. For aerospace and defense, we fabricate ultra-lightweight duct assemblies and high-strength structural sheet metal components. In commercial transport, laser seam joining ensures rigid fleet vehicle panel integration and heavy-duty structural mounting brackets. Additionally, for food and beverage processing, Lingyufab produces sanitary, crevice-free stainless steel hoppers, mixing tanks, and pressure piping built to rigorous hygienic standards.
Precision Laser Welding Services
Laser welding is an advanced thermal joining process that utilizes a high-energy density, coherent light beam to fuse metal components. By concentrating laser light onto a microscopic focal point (0.2 mm - 0.6 mm), Lingyufab achieves deep penetration welds with extremely low total heat input.
Two Primary Operating Modes
Features of Laser Welding
-
Minimal Heat-Affected Zone (HAZ) Extremely low thermal input (0.1 mm - 0.5 mm HAZ) eliminates panel warping, buckling, and discoloration on thin sheet metal.
-
Non-Contact Precision No mechanical force is applied to the workpiece, preserving fragile geometry and surface finishes.
-
Clean & Aesthetic Seams Continuous, mirror-like weld beads require minimal to zero post-grinding before powder coating or plating.
-
High Production Speed Linear welding speeds from 2.0 m/min to 8.0 m/min dramatically increase throughput.
-
Repeatable Automation Fully integrated with CNC multi-axis gantries for 100% batch-to-batch consistency.
Laser Welding Techspecs
State-of-the-art fiber laser systems calibrated for high-precision custom manufacturing.
| Parameter | Lingyufab Technical Capability | Benefit to Customer |
|---|---|---|
| Laser Source Power | 1.0 kW - 12.0 kW Continuous Wave (CW) / Pulse | Handles ultra-thin foils up to heavy structural sheets |
| Positioning Accuracy | ±0.02 mm - ±0.05 mm | Critical for medical, aerospace, and electronics tolerances |
| Heat-Affected Zone (HAZ) | 0.1 mm - 0.5 mm | Prevents sheet metal distortion; no manual straightening needed |
| Weld Depth-to-Width Ratio | Up to 10:1 | High joint strength in a single high-speed pass |
| Max Processing Speed | Up to 8.0 m/min | Scalable output for large production orders |
| Shielding Gases | High-purity Nitrogen (N2), Argon (Ar), Helium (He) | Oxidation-free, bright, anti-corrosive weld joints |
Laser Welding Material
Processes a comprehensive spectrum of metals, including highly reflective and difficult-to-weld alloys:
- Stainless Steel (300 & 400 Series): Retains superior corrosion resistance; ideal for sanitary, food-grade, and medical enclosures.
- Carbon & Mild Steel (CR/HR): High processing speeds with exceptional structural joint integrity.
- Aluminum Alloys (5000, 6000 Series): Processed with dynamic laser beam wobble technology to prevent hot cracking and porosity.
- Copper & Brass Alloys: High peak-power laser optics reliably overcome initial optical surface reflectivity.
- Galvanized Steel Sheets: Managed with engineered gap tolerances to vent zinc vapors safely without seam pitting.
Laser Welding Accuracy
Precision is the core benchmark at Lingyufab, backed by optical fiber heads, real-time seam tracking vision systems, and multi-axis servo gantries.
Focal Spot Precision
Concentrated laser beam diameter down to 0.2 mm ensures pinpoint energy distribution.
Repeatable Tolerances
Linear positioning accuracy of ±0.02 mm guarantees exact seam placement across thousands of production units.
Distortion-Free Assembly
Eliminates post-welding heat distortion, ensuring outer dimensions strictly adhere to your master CAD model.
Laser Welding Applied in Sheet Metal Fabrication
Seamlessly bridging laser cutting, CNC bending, and final surface finishing.
Laser Welding Guide for Sheet Metal Assembly (DFM)
Custom Laser Welding Parts
Lingyufab produces high-precision custom parts tailored to demanding OEM applications:
What parts can be manufactured by Laser Welding?
| Industry Sector | Example Manufactured Parts | Key Performance Benefit |
|---|---|---|
| Electrical Enclosures | Control cabinets, outdoor junction boxes, server racks | Watertight/dust-tight IP66 seams, flat outer walls |
| New Energy & Automotive | Battery pack trays, busbars, cooling plates, exhaust tubes | High electrical conductivity, low thermal impact on cells |
| Medical Equipment | Diagnostic housings, surgical tray frames, sterilizer tanks | Crevice-free, hygienic welds meeting FDA standards |
| HVAC & Filtration | Stainless steel ducting, filter housings, heat exchangers | Leak-free pressure seals, high travel speed |
| Precision Hardware | Hinges, brackets, custom push-bars, stainless handles | High mechanical strength with pristine surface finish |
How to Control Quality for Laser Welding?
Quality control is integrated into every stage of the Lingyufab manufacturing process:
- Pre-Weld DFM & Joint Inspection: 3D laser scanning and CMM inspection verify sheet metal bend angles and edge gap tolerances before welding starts.
- In-Line Optical Process Monitoring: Photodiode sensors and vision seam-tracking systems dynamically adjust laser focus and laser output power in real time.
- Atmospheric Protection: High-purity gas delivery systems prevent weld seam carbonization and oxidation.
- Non-Destructive Testing (NDT): Includes Helium Leak Testing, 3D Surface Profiling & Penetrant Testing, and periodic Destructive Tensile & Metallographic Testing.
Laser Welding Manufacturer
When you select Lingyufab as your dedicated Laser Welding Manufacturer, you gain access to an end-to-end manufacturing partner committed to quality, speed, and competitive pricing.
- State-of-the-Art Plant: Equipped with multi-kW fiber laser centers.
- Engineering Expertise: In-house DFM assistance to optimize your designs.
- Full-Service Fabrication: Laser cutting, CNC bending, laser welding, powder coating, and final assembly under one roof.
Applications of Laser Welding
Driving efficiency across key global industries
Telecom
munications
Outer structural shells and EMI-shielded cabinets.
Aerospace & Defense
Lightweight duct assemblies and structural sheet components.
Commercial Transport
Fleet vehicle panel joining and structural mounting brackets.
Food & Beverage
Sanitary stainless steel hoppers, mixing tanks, and piping.
