Sheet Metal Prototyping

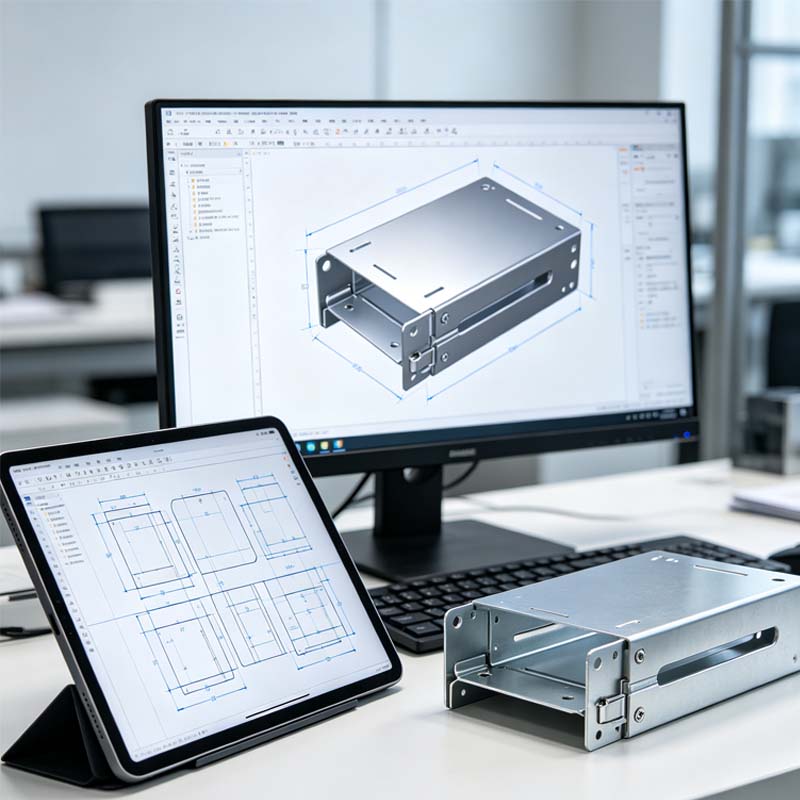

Leading Sheet Metal Prototyping Service
Sheet metal prototyping is a rapid manufacturing process that transforms flat metal sheets into complex 3D parts. It utilizes precision techniques—such as fiber laser cutting, CNC punching, press brake bending, hardware insertion, and welding—to fabricate functional components directly from digital designs without expensive hard tooling.Lingyufab operates as a premier China-based custom sheet metal prototyping manufacturer, delivering high-precision components and rapid iteration services for global engineering teams. By transforming digital 3D models into functional physical parts quickly, we help clients validate designs before committing to mass production.
What is Sheet Metal Prototyping?
Sheet metal prototyping is a rapid manufacturing process that transforms flat metal sheets into complex 3D parts. It utilizes precision techniques—such as fiber laser cutting, CNC punching, press brake bending, hardware insertion, and welding—to fabricate functional components directly from digital designs without expensive hard tooling.
Core Technical Specifications
Supported Materials
Aluminum (5052, 6061, 7075), Stainless Steel (304, 316), Cold Rolled Steel (CRS), Galvanized Steel, Copper, and Brass.
Material Thickness
Ranging from 0.5 mm to 12 mm depending on the alloy and structural application.
Precision Tolerances
Standard mechanical tolerances maintained down to ±0.1 mm, ensuring seamless mechanical assembly.
Surface Finishing
In-house and partner finishing options including powder coating, bead blasting, clear or colored anodizing, brushing, passivation, and silk-screening.

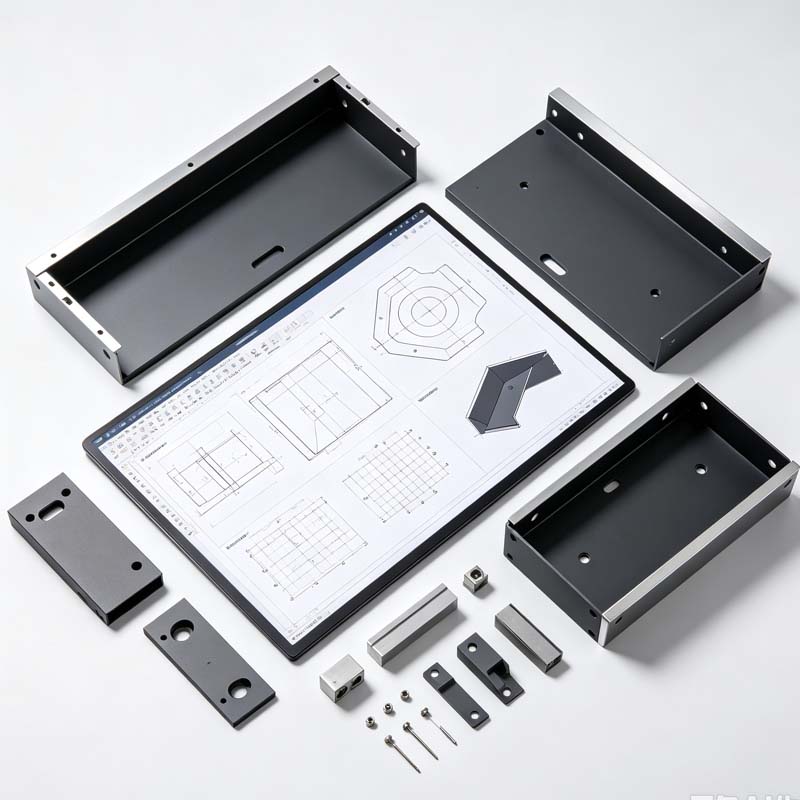

Sheet Metal Prototyping Service in China
lingyufab serves as a premier, China-based custom sheet metal prototyping manufacturer, specializing in delivering high-precision components and rapid iteration cycles for global engineering teams. By bridging the gap between digital CAD models and functional hardware, we help product designers validate structural integrity, fit, and aesthetics before committing to high-volume tooling.

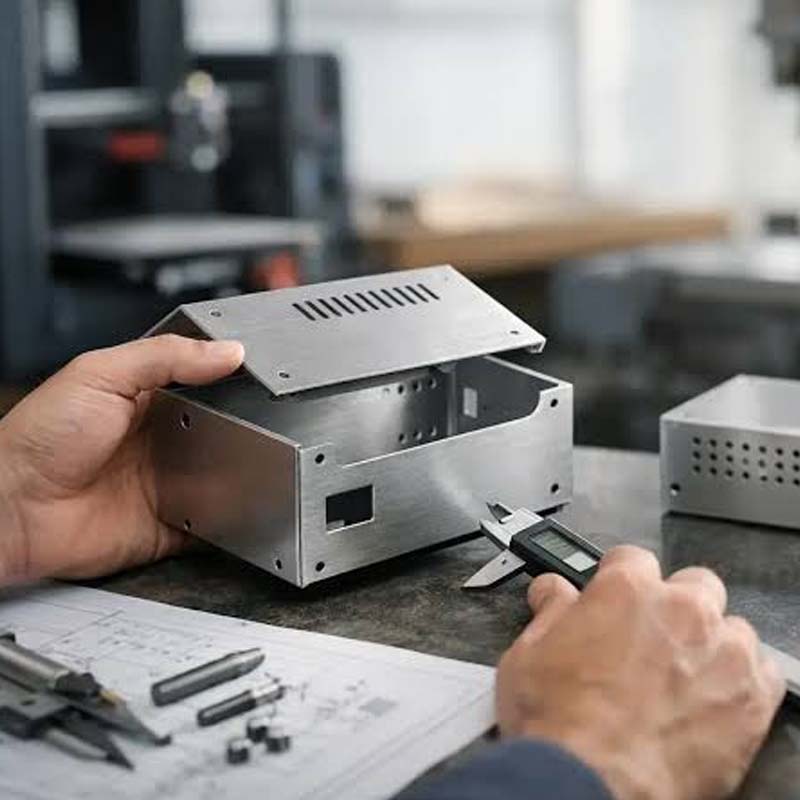

Custom Sheet Metal Parts and Applications
lingyufab manufactures a vast array of bespoke components tailored for diverse industries, including telecommunications, consumer electronics, medical diagnostics, and automotive hardware. Typical parts include electronic enclosures, custom chassis, mounting brackets, control panels, and intricate sheet metal assemblies.
CNC Sheet Metal Prototyping Service
Sheet metal prototyping is an essential manufacturing process that turns flat metal sheets into structural components. It employs a sequence of precise operations—including laser cutting, CNC punching, custom forming, riveting, and welding—to build exact replicas of end-use production parts.
Core Features and Technical Capabilities
Material Selection
Extensive inventory including Aluminum (5052, 6061), Stainless Steel (304, 316), Cold Rolled Steel, Galvanized Steel, Copper, and Brass.
Dimensional Accuracy
Exceptional precision with tolerances maintained down to ±0.1 mm for complex bending and cutting profiles.
Material Thickness
Capability to process sheets ranging from 0.5 mm to 12 mm depending on structural requirements.
Surface Treatments
Comprehensive finishing options such as powder coating, anodizing, chromate conversion, brushing, and screen printing.
Custom Parts and Applications
lingyufab manufactures a vast array of bespoke components tailored for diverse industries, including telecommunications, consumer electronics, medical diagnostics, and automotive hardware. Typical parts include electronic enclosures, custom chassis, mounting brackets, control panels, and intricate sheet metal assemblies.
Quality Control Standards
Incoming Verification
Rigorous checks on raw material certificates, thickness, and alloy composition.
First-Article Inspection (FAI)
Detailed dimensional measurement of initial samples using CMM equipment and digital gauges.
In-Process Tracking
Continuous monitoring during cutting, bending, and assembly stages to catch deviations early.
Final QA & Packaging
Comprehensive visual inspection and protective packaging to ensure transit safety.
Frequently Asked Questions
What file formats are required for a quote?
We accept standard CAD formats including STEP, IGES, DXF, and PDF drawings with explicit tolerances.
What is the standard production lead time?
Rapid prototypes are typically dispatched within 5 to 7 business days.
Does lingyufab enforce an MOQ?
No strict Minimum Order Quantity is imposed; we accommodate single-piece orders as well as small-batch production runs.
