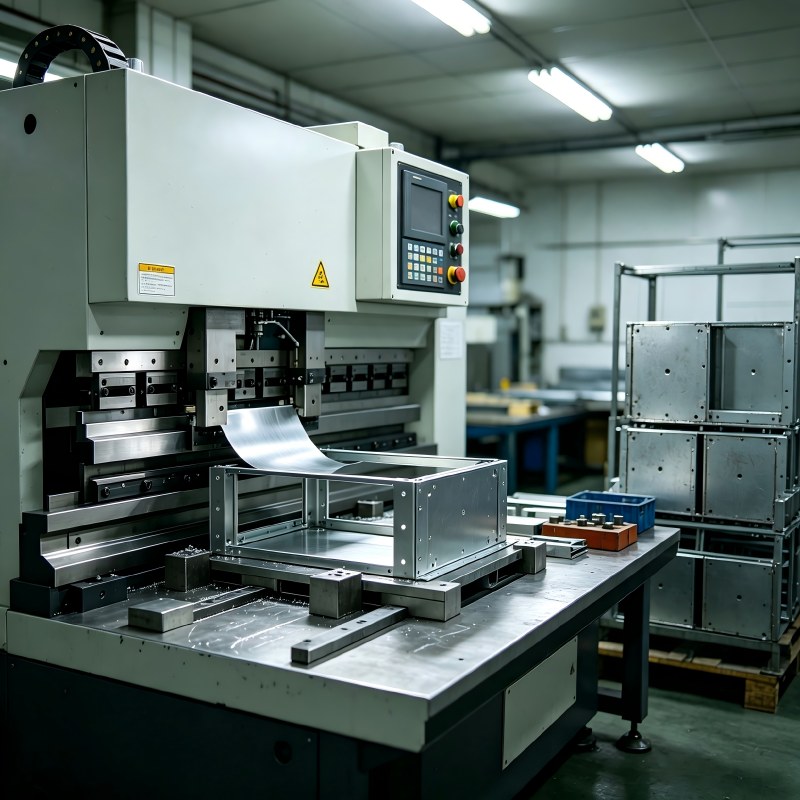

Leading Control Box Service Manufacturer

Lingyufab (Shanghai Lingyu Industrial Co., Ltd.), established in 2003, stands out as a premier service manufacturer of control boxes. With over 20 years of experience in precision sheet metal fabrication, we offer comprehensive solutions from 1-piece prototyping to large-scale production. Our facility is equipped with advanced laser cutting systems, CNC bending centers, stamping presses, and cold heading machines. As a Mitsubishi Electric certified core supplier adhering to Japanese quality standards, we serve clients across industrial automation, manufacturing, building management, and transportation sectors.

China Control Box Manufacturer

As a China-based manufacturer located in Shanghai, Lingyufab leverages the region's robust supply chain and skilled workforce to produce high-quality control boxes at competitive prices. We adhere to ISO 9001:2015, ISO 14001, and hold TÜV CE certification. Our in-house production eliminates outsourcing costs, delivering 15 to 20 percent cost savings to customers. We support 1-piece samples, 100-piece pilot runs, and high-volume mass production with monthly output exceeding 8000 units.

Control Box Techspecs

Our control boxes are engineered to precise specifications. Materials include stainless steel SUS304 and SUS316, carbon steel, and galvanized steel. Thickness ranges from 0.8mm to 3.0mm depending on application requirements. Dimensional tolerances are held to plus or minus 0.05mm for critical features. Standard features include DIN rail mounting provisions, cable entry ports with sealing glands, and grounding studs. Surface finishing options include powder coating with any RAL color, stainless steel, and galvanized steel. Custom features include viewing windows, operator panel openings, lockable handles, and internal mounting plates. Protection ratings available up to IP66 upon request. Every batch is backed by Mill Test Certificates ensuring full material traceability.

Custom Control Box Parts

Lingyufab specializes in producing custom control box parts including PLC enclosures with DIN rail mounting, HMI operator panels with display cutouts, machine control boxes with pushbutton openings, instrumentation boxes with viewing windows, and traffic control cabinets for roadside installation. Each part is tailored to your control system requirements, with provisions for cable entry, panel mounting, and thermal management. Our engineering team provides upfront technical support, including design optimization and cost-reduction recommendations. We support reverse engineering services. If you have a physical sample without drawings, we can 3D scan, model, and generate production-ready engineering prints. Whether you need a single prototype or thousands of units, we deliver consistent quality with zero MOQ for prototyping stages.

Control Box Applied in Sheet Metal Fabrication

What truly sets Lingyufab apart is our ability to integrate the full spectrum of sheet metal processes, including laser cutting, CNC bending, welding, assembly, powder coating, and surface treatment, into a seamless manufacturing workflow for control boxes. Rather than outsourcing individual steps to multiple vendors, we manage everything in-house, ensuring tighter quality control, faster lead times, and consistent communication throughout the entire production cycle. With our in-house fastener manufacturing, we can pre-install self-clinching nuts, grounding studs, and DIN rail mounting hardware directly into your boxes, eliminating external sourcing and reducing assembly time on your end. The result is a streamlined, cost-effective solution that performs reliably in the field.

What is Control Box?

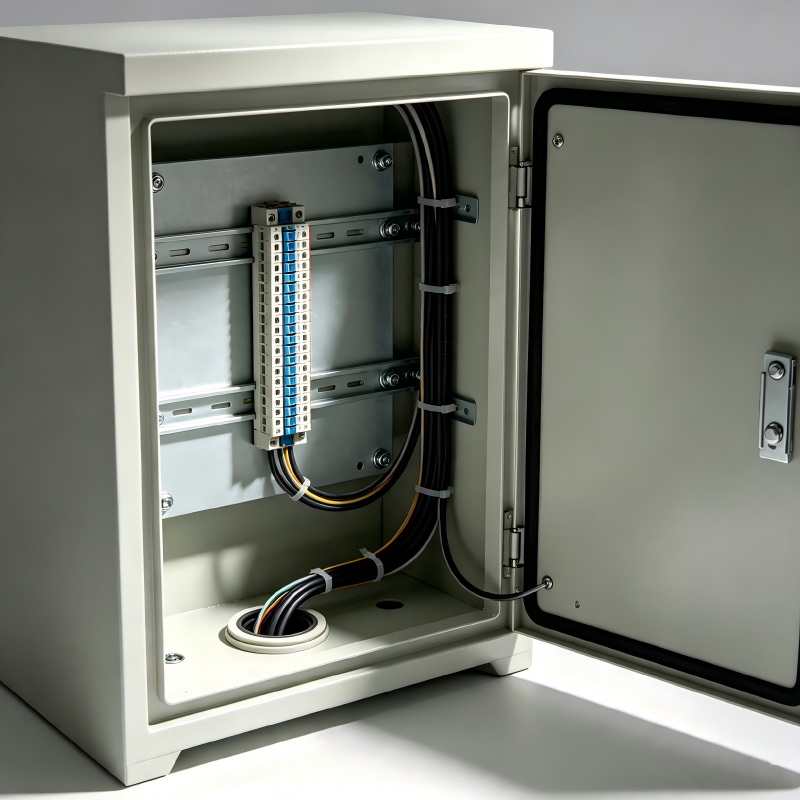

A control box is a protective enclosure fabricated from metal sheets through processes including laser cutting, CNC bending, welding, and powder coating. It is designed to house control components such as PLCs, HMIs, pushbuttons, indicators, and terminal blocks in industrial automation and equipment control applications. At Lingyufab, we manufacture control boxes strictly to customer 2D prints in PDF, DWG, and DXF formats and 3D CAD models in STEP, IGES, and SolidWorks formats, ensuring 100 percent build-to-print execution.

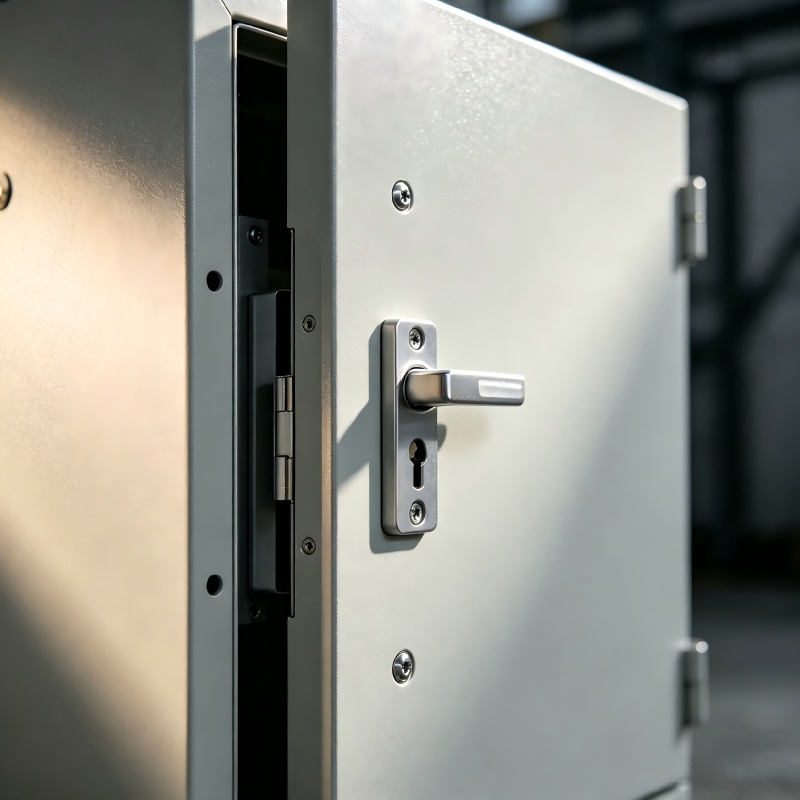

Features of Control Boxes

1. High structural strength with sealed seams and customizable configurations

2. DIN rail mounting provisions for easy component installation

3. Multiple material options including stainless steel, carbon steel with powder coating, and galvanized steel

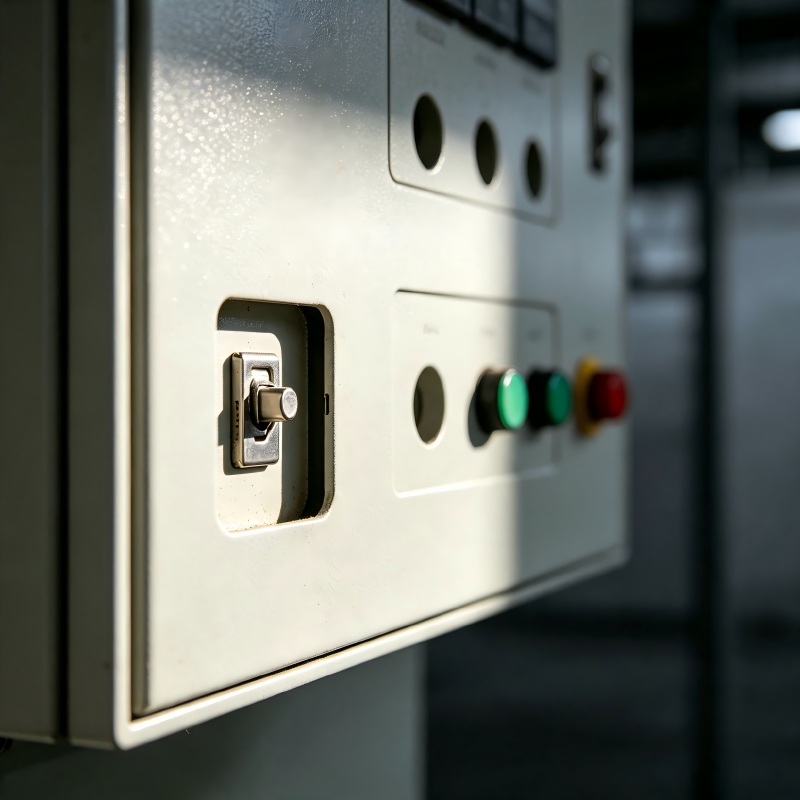

4. Customizable panel openings for HMIs, pushbuttons, and indicators

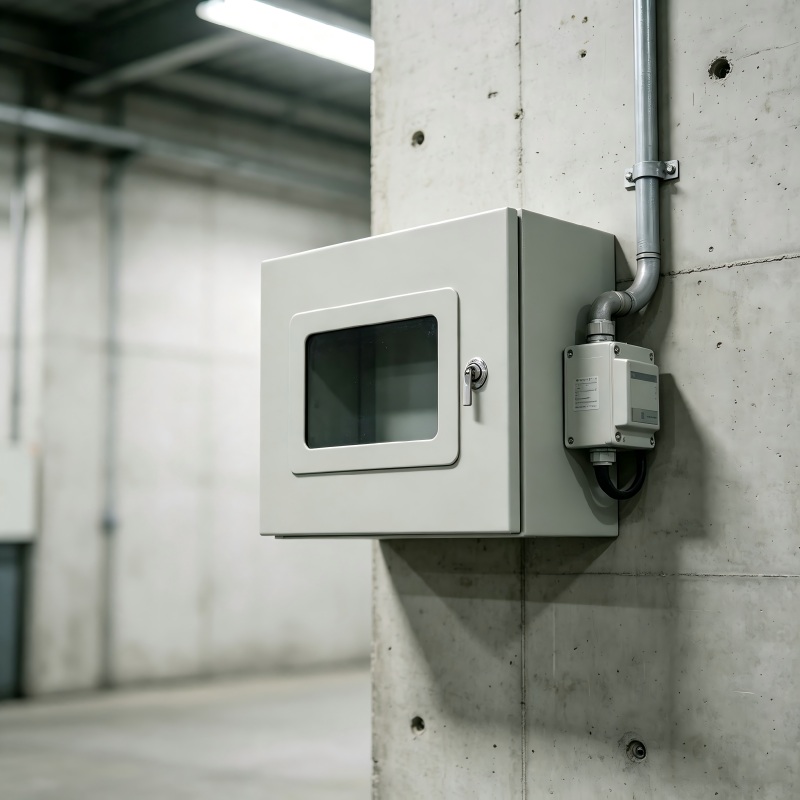

5. Viewing windows and lockable handles for operator access

6. Pre-installed grounding studs and cable management provisions

7. Full material traceability with Mill Test Certificates for every batch

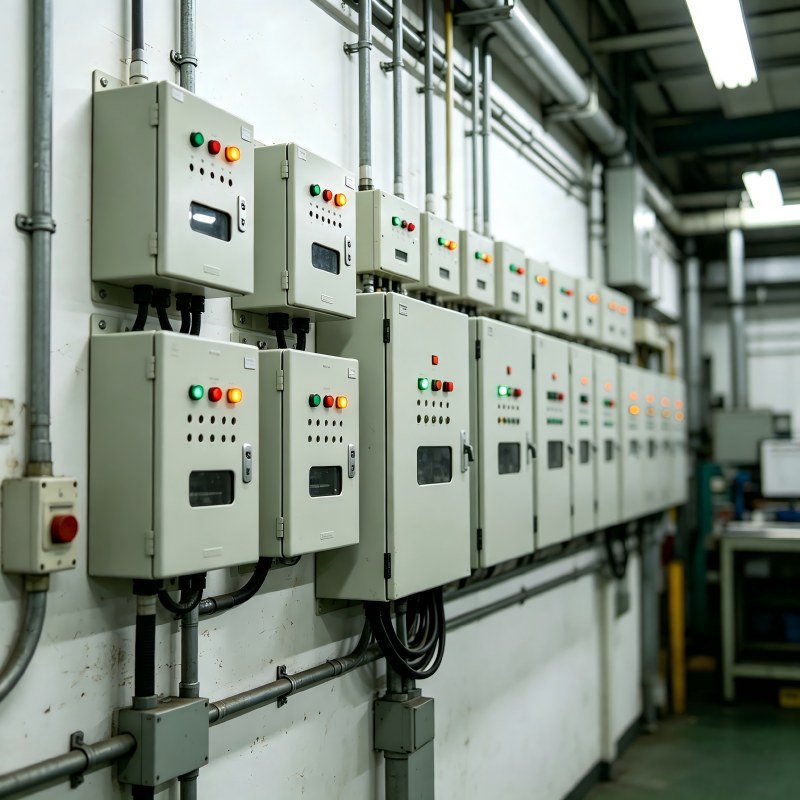

Applications of Control Boxes

These control boxes are deployed in industrial automation for PLC and HMI enclosures, manufacturing equipment for machine control panels, building management for HVAC and lighting control systems, process control for instrumentation and monitoring equipment, and transportation for traffic signal and control systems. They protect control components from dust, moisture, impact, and EMI, ensuring reliable operation in demanding conditions. Lingyufab serves OEM clients across industrial automation, manufacturing, building management, and transportation sectors.

Control Box Guide for Sheet Metal Assembly

When integrating a control box into an assembly, consider mounting orientation for operator access, cable entry and sealing, component layout for thermal management, and grounding for electrical safety. Ensure proper sealing to maintain the specified IP or NEMA rating. Recommended design practices include maintaining minimum flange length of at least 4 times material thickness, using consistent bend radii, and adding bend relief notches at corners to prevent tearing. Our engineering team provides assembly drawings, component layout recommendations, and installation guidelines to streamline your final integration.

Control Box Material

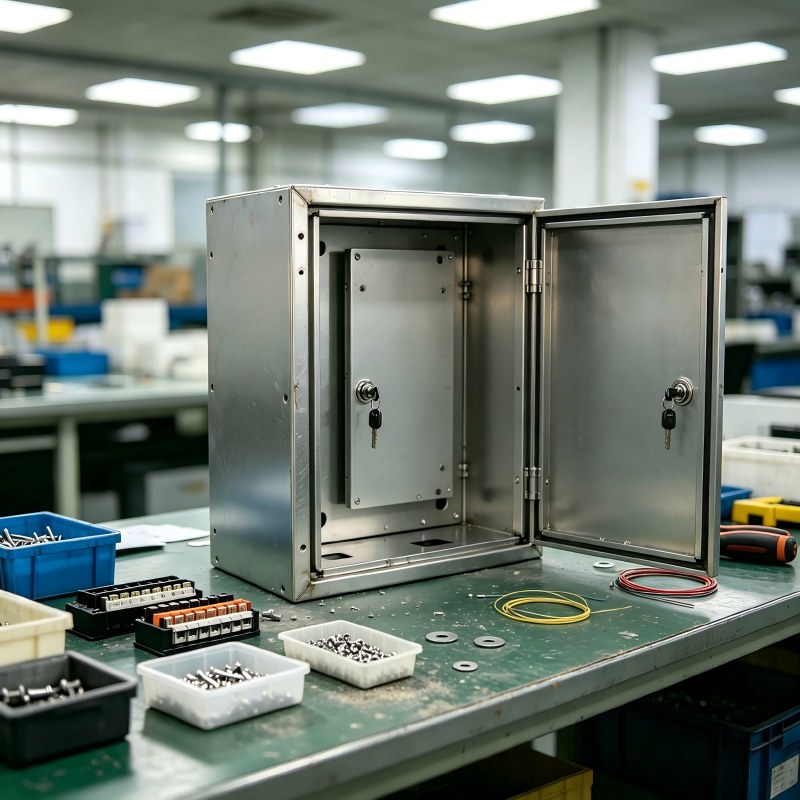

1. Stainless Steel (SUS304, SUS316): Excellent corrosion resistance, ideal for food processing, marine, and corrosive environments

2. Carbon Steel with Powder Coating: High strength with durable coating, ideal for general industrial applications with RAL color selection

3. Galvanized Steel: Rust-proof with good weather resistance, ideal for outdoor and utility installations

4. Aluminum (5052, 6061): Lightweight with natural corrosion resistance, ideal for portable and weight-sensitive applications

Control Box Accuracy

1. Standard linear tolerance: plus or minus 0.13mm; Precision tolerance: plus or minus 0.05mm

2. Bending angle tolerance: plus or minus 0.5 degree with real-time laser compensation

3. Panel cutout accuracy: plus or minus 0.08mm for standard, plus or minus 0.05mm for precision

4. Verification equipment includes CMM coordinate measuring machines, 3D optical laser scanners, and in-bend automatic angle sensors

How to Control Quality for Control Boxes?

01. Incoming Material Control: Verify material thickness, flatness, and mechanical properties with MTC certificates

02. In-Process Control: Real-time online inspection following SOPs with automatic angle tracking

03. Final Inspection: Comprehensive dimensional verification, surface finish inspection, weld quality assessment, panel cutout accuracy testing, and sealing integrity verification

04. Pre-Shipment Control: Final quality review, packaging integrity check, and complete quality documentation

What parts can be manufactured by Control Boxes?

1. PLC enclosures with DIN rail mounting

2. HMI operator panels with display cutouts

3. Machine control boxes with pushbutton openings

4. Instrumentation boxes with viewing windows

5. Traffic control cabinets for roadside installation

6. Custom sizes and panel configurations

7. Pre-installed hardware and mounting plates

8. Reverse engineering of physical samples without existing drawings

Control Box Manufacturer

Lingyufab (Shanghai Lingyu Industrial Co., Ltd.) is a certified manufacturer established in 2003 with over 20 years of precision fabrication experience. We hold ISO 9001:2015, ISO 14001, and TÜV CE certifications. We are a Mitsubishi Electric certified core supplier. Monthly production exceeds 8000 units, covering 1-piece prototypes, 100-piece pilot runs, and high-volume mass production. We support OEM and ODM manufacturing with zero MOQ for prototyping.

Control Box FAQ

A: IP54, IP66, and NEMA 4 ratings available upon request, suitable for both indoor and outdoor applications.

A: Yes, we can provide custom cutouts for HMIs, pushbuttons, indicators, and other control components based on your specifications.

A: Stainless steel (304/316), carbon steel with powder coating, galvanized steel, and aluminum.

A: Zero MOQ for prototyping. We support 1-piece samples, 100-piece pilot runs, and high-volume mass production.

A: Yes, we can pre-install DIN rails, terminal blocks, and mounting plates during production.

A: 15 to 20 working days for prototypes and 25 to 35 days for bulk orders. Expedited options available.

A: Yes, every batch includes Mill Test Certificates with full material traceability. Third-party testing is also supported.
