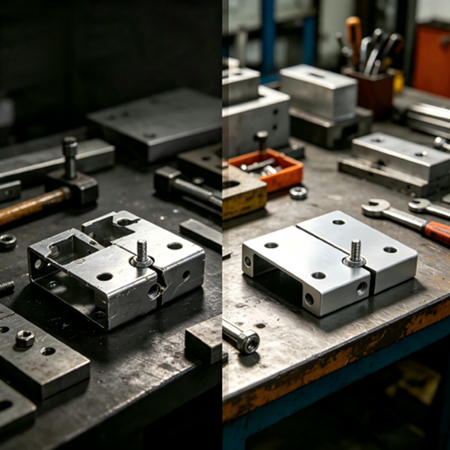

Why Sheet Metal Parts Don't Fit: A Practical Guide to Diagnosing Assembly Problems
19
Oct’2026Why Sheet Metal Parts Don't Fit: A Practical Guide to Diagnosing Assembly Problems
Sheet metal assembly is where all the previous fabrication steps come together—laser cutting, CNC bending, welding, and surface treatment. Have you ever received a batch of parts where every single piece passed individual inspection, yet when you tried to assemble them, nothing fit together properly? The holes that should have aligned were off by a fraction of a millimeter. The flanges that were supposed to meet flush left a gap. And the supplier kept telling you: “All parts are within tolerance.”
This is one of the most frustrating and costly problems in sheet metal fabrication. Parts that pass inspection individually can still fail in assembly—not because they're defective, but because the relationship between parts wasn't designed for real‑world manufacturing variations. The problem isn't the parts. It's the assembly.
At Lingyufab, we solve assembly problems before they happen. With over 20 years of precision manufacturing experience since 2003 and certification as a core supplier for Mitsubishi Electric, we understand why parts that fit perfectly in CAD don't always fit in reality. Our integrated approach—combining laser cutting, CNC bending, welding, and sheet metal fabrication under one roof—allows us to control every step that affects final assembly fit. This guide explains the most common reasons sheet metal parts fail to assemble—and how to prevent them.

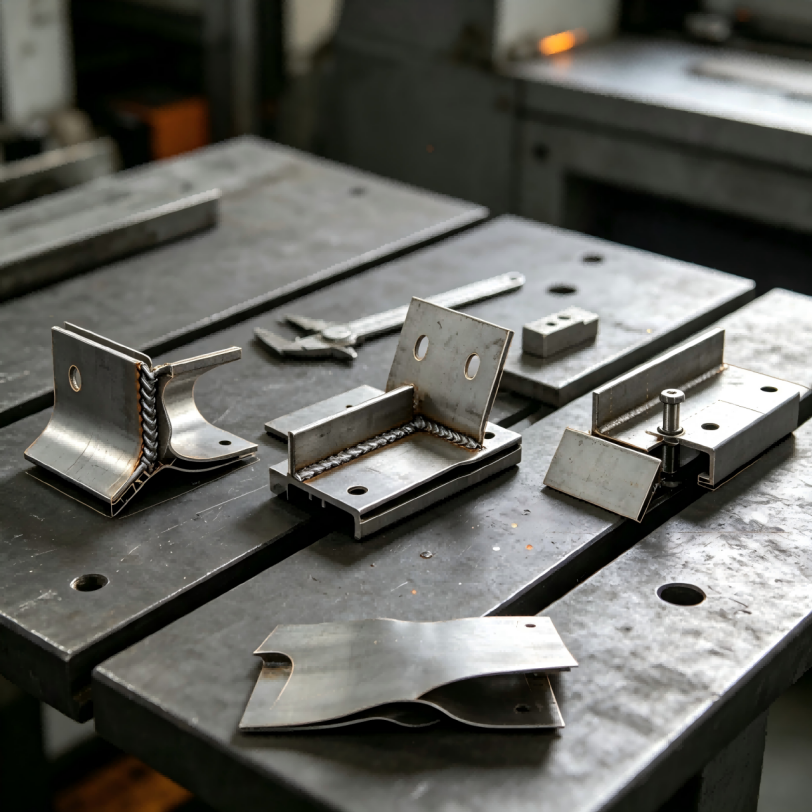

The Fundamental Problem: Treating Thin Sheet Like Solid Stock
The core mistake in sheet metal assembly is treating thin sheet metal like solid stock. In thick material, a tapped hole behaves like a fixed feature with meaningful thread engagement. In 0.048‑inch sheet, the material flexes, bends, and deforms during fabrication—and small errors accumulate.
Every manufacturing process has inherent variation. No two parts are ever exactly identical. Laser cutting has a tolerance of approximately ±0.1mm. CNC bending has a tolerance of ±0.5° to ±1°. Material thickness varies from batch to batch. These small variations are acceptable individually—but when multiple parts come together in assembly, they stack up.
This is called tolerance stack‑up, and it's the most common reason parts that are “within tolerance” don't fit together. If stacked tolerances push a mounting flange out by a quarter inch, that deviation travels to final assembly and into customer‑facing fit and finish.
Root Cause 1: Tolerance Stack‑Up
When multiple parts with their own tolerances are assembled, the variations add together. A bend that is 0.5° off on one part and another that is 0.5° off in the opposite direction might still be within individual tolerances, but together they create a cumulative error that prevents proper alignment.
How to diagnose it: If individual parts measure correctly but fail when assembled, tolerance stack‑up is likely the culprit. Check whether critical dimensions on mating parts are referenced to the same datum—if not, measurement inconsistencies are probably compounding the error.
How to prevent it: Design the assembly so that tolerances cancel rather than accumulate—for example, by referencing all parts to a common datum rather than chaining tolerances from one part to the next. Use oversize or slot holes to absorb cumulative errors. A zero‑clearance design between parts is a recipe for tolerance stack‑up problems.
Root Cause 2: Unclear Datums and Reference Points
A datum is the reference surface or edge from which all measurements are taken. When datums are not clearly defined on drawings, different people measure from different starting points—and the parts don't match. The fabricator might measure from one edge while the assembly team measures from another, leading to parts that are technically “in tolerance” but still don't fit.
How to diagnose it: Ask your supplier: “Where are the critical datums on this part?” If they can't point to a specific, agreed‑upon reference surface, the drawing is probably ambiguous.
How to prevent it: Define datums clearly on every drawing. Every dimension should reference these datums. This ensures that everyone—designer, fabricator, quality inspector, and assembly team—measures from the same starting point.
Root Cause 3: Welding Distortion
Welding introduces concentrated heat that can cause significant distortion in sheet metal parts. When the weld cools and shrinks, it pulls the surrounding material out of shape. Heat input causes rapid expansion and uneven cooling, leading to warping and loss of flatness—critical failures in precision enclosures. In thin sheet metal, butt joints are particularly sensitive to fit‑up quality—gaps increase heat input and distortion, while poor alignment leads to inconsistent penetration.
How to diagnose it: If parts fit before welding but not after, welding distortion is almost certainly the cause. Check flatness and squareness before and after welding to identify where distortion occurs.
How to prevent it: Control heat input—use the lowest practical amperage and fastest travel speed. Use jigs and fixtures to hold parts in position during welding. Apply welds in a controlled order, often symmetrical or from the center outward, balancing heat distribution. Design joints that minimize weld volume.
Root Cause 4: Missing Alignment Features
Parts that rely on manual forcing or visual alignment during assembly are prone to fit problems. Without clear alignment features—tabs, slots, or pilot holes—operators have no consistent way to position parts correctly during assembly.
How to diagnose it: If assembly requires excessive force, shimming, or rework to get parts to align, missing alignment features are likely the issue.
How to prevent it: Include alignment features in your design—tabs, slots, or pilot holes—to ensure consistent positioning during assembly. Tab and slot joints not only guide assembly but also provide mechanical strength.
Root Cause 5: Residual Stresses from Forming
Residual stresses in sheet metal arise from phase transformation, thermal stress, or mechanical stress. Bending, stamping, and other forming operations introduce stresses that can cause parts to distort after cutting or during welding.
How to diagnose it: If parts warp or bow after being released from fixtures, or if distortion appears after welding, residual stresses are likely the cause.
How to prevent it: Consider using leveled sheet metal to eliminate residual stresses. Optimize bend sequences to minimize stress accumulation. For critical applications, consider stress‑relief annealing.
Solving Assembly Problems: A Systematic Approach
When parts don't fit, follow this diagnostic sequence:
Check the datums first. Are all critical dimensions referenced to the same starting point? If not, that's your first fix.
Evaluate tolerance stack‑up. Add up the tolerances on mating dimensions. If the total variation exceeds the available clearance, the design needs adjustment.
Inspect before and after welding. Measure critical dimensions before and after welding to isolate distortion.
Test with a sample assembly. If possible, assemble a sample from each production batch before full production runs.
Communicate with your supplier. Share your findings—most suppliers can adjust processes to address specific assembly issues.
How Lingyufab Prevents Assembly Problems
Lingyufab is a professional sheet metal fabrication manufacturer and sheet metal supplier based in Shanghai, China, with over 20 years of precision manufacturing experience since 2003. We follow strict Japanese quality standards and are a certified core supplier for Mitsubishi Electric.
What sets Lingyufab apart as a sheet metal supplier is our integrated approach to assembly fit. Because we control laser cutting, CNC bending, welding, and sheet metal fabrication under one roof, we can identify and correct fit issues before parts leave our facility.
Our approach to preventing assembly problems:
Design review — Our engineering team reviews your drawings before production, identifying unclear datums, missing alignment features, and tolerance stack‑up risks
Process control — We maintain consistent tolerances across laser cutting (±0.1mm typical) and CNC bending (±0.5° typical)
Welding fixturing — We use custom jigs and fixtures to hold parts in position during welding, preventing distortion
Fit verification — We test assemble critical assemblies before shipment
Integrated manufacturing — All processes under one roof eliminates the coordination gaps that often cause fit problems when working with multiple suppliers
Our in‑house capabilities include:
Laser cutting — High‑precision cutting with consistent accuracy (±0.1mm typical), ensuring hole positions and part contours are accurate from the start.
CNC bending — Precision bending with consistent bend angles (±0.5° typical) and springback compensation.
Welding — TIG welding for stainless steel, MIG welding for general fabrication, and spot welding for thin sheet connections, with jigs and fixtures to prevent distortion.
Sheet metal fabrication — Complete assembly, surface treatment, and fastener installation.
ISO 9001, ISO 14001, and TÜV CE certified.
Full material traceability with Mill Test Certificates.
One supplier, full responsibility. From laser cutting and CNC bending to welding, surface treatment, and fastener installation, we handle everything under one roof. This integration ensures consistent quality, shorter lead times, and a single point of accountability for your entire project.
If you are concerned about assembly fit in your sheet metal parts, our engineering team is available to review your drawings and provide a free tolerance analysis. We'll help you identify potential fit issues before production begins. If you are looking for a reliable sheet metal fabrication supplier, please don't hesitate to contact us.
Quick Assembly Fit Checklist for Buyers
| What to Check | What to Look For |
|---|---|
| Clear datums | Are all measurements referenced to the same starting point? |
| Alignment features | Are tabs, slots, or pilot holes included for assembly guidance? |
| Tolerance stack-up | Have cumulative tolerances been considered? |
| Weld sequence | Is the welding sequence designed to minimize distortion? |
| Test assembly | Has a sample assembly been tested before full production? |
| Supplier integration | Does your supplier control all critical processes in-house? |
FAQs
Q1: Why do parts that pass inspection individually fail to assemble?
Parts that pass inspection individually can still fail in assembly because the relationship between parts wasn't designed for real‑world manufacturing tolerances. Individual part tolerances that work in isolation often fail in assembly due to tolerance stack‑up, unclear datums, or missing alignment features.
Q2: What is tolerance stack‑up in sheet metal assembly?
Tolerance stack‑up is the cumulative effect of individual part tolerances on overall assembly fit. When multiple parts each have their own variations, these variations can add together to create a total deviation that exceeds acceptable limits.
Q3: What is a datum and why does it matter?
A datum is a reference surface or edge from which all measurements are taken. When datums are not clearly defined, different people measure from different starting points—and the parts don't match. Clear datums ensure consistent measurement from design to production to assembly.
Q4: How does welding affect assembly fit?
Welding introduces concentrated heat that causes expansion and contraction, creating internal stresses. When the weld cools and shrinks, it pulls the surrounding material out of shape. In thin sheet metal, this distortion can significantly affect assembly fit.
Q5: How can I prevent hole misalignment in sheet metal assemblies?
Specify hole position tolerances clearly, use common datums for all measurements, and consider using slot holes instead of round holes for one set of holes to allow adjustment during assembly. For critical mounting applications, oversize one hole in each mating pair to provide clearance for positional variation.
Q6: Can Lingyufab review my design for assembly fit before production?
Yes. Lingyufab provides free design review and tolerance analysis. Our engineering team can review your drawings, identify potential fit issues, and suggest design improvements that ensure your parts will assemble correctly.
