Leading Custom Metal Brackets Service Manufacturer

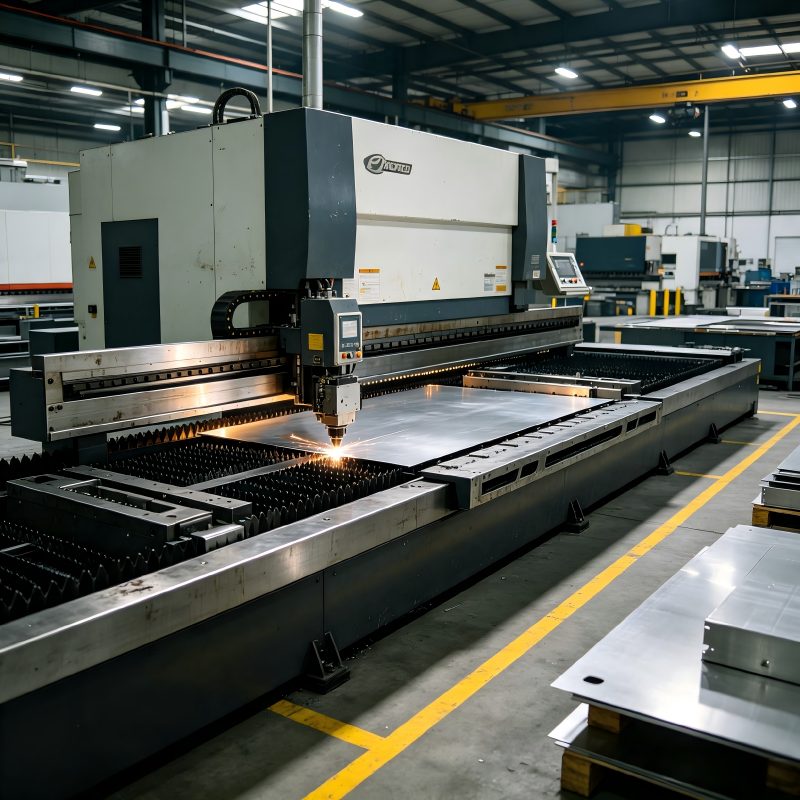

Lingyufab (Shanghai Lingyu Industrial Co., Ltd.), established in 2003, stands out as a premier service manufacturer of custom metal brackets. With over 20 years of experience in precision sheet metal fabrication, we offer comprehensive solutions from 1-piece prototyping to large-scale production. Our facility is equipped with advanced laser cutting systems, CNC bending centers, stamping presses, and cold heading machines (Taiwan brand). As a Mitsubishi Electric certified core supplier adhering to Japanese quality standards, we serve OEM clients across industrial equipment, automotive, construction, solar energy, and HVAC sectors.

China Custom Metal Brackets Manufacturer

As a China-based manufacturer located in Shanghai, Lingyufab leverages the region's robust supply chain and skilled workforce to produce high-quality custom metal brackets at competitive prices. We adhere to ISO 9001:2015, ISO 14001, and hold TÜV CE certification. Our in-house production eliminates outsourcing costs, delivering 15-20% cost savings to customers. We support 1-piece samples, 100-piece pilot runs, and high-volume mass production with monthly output exceeding 8,000 units.

Custom Metal Brackets Techspecs

Our custom metal brackets are engineered to precise specifications: materials include stainless steel (SUS304, SUS316), aluminum (5052, 6061), carbon steel, galvanized steel, copper, and brass. Thickness ranges from 0.5mm to 20mm. Dimensional tolerances: ±0.05mm for critical features. Bending angle accuracy: ±0.5° with real-time laser compensation. Finishing options: powder coating (any RAL color), zinc plating, anodizing, polishing, painting. Configurations: L-brackets, Z-brackets, U-brackets, heavy-duty structural brackets, and custom multi-bend designs.

Custom Metal Brackets Parts

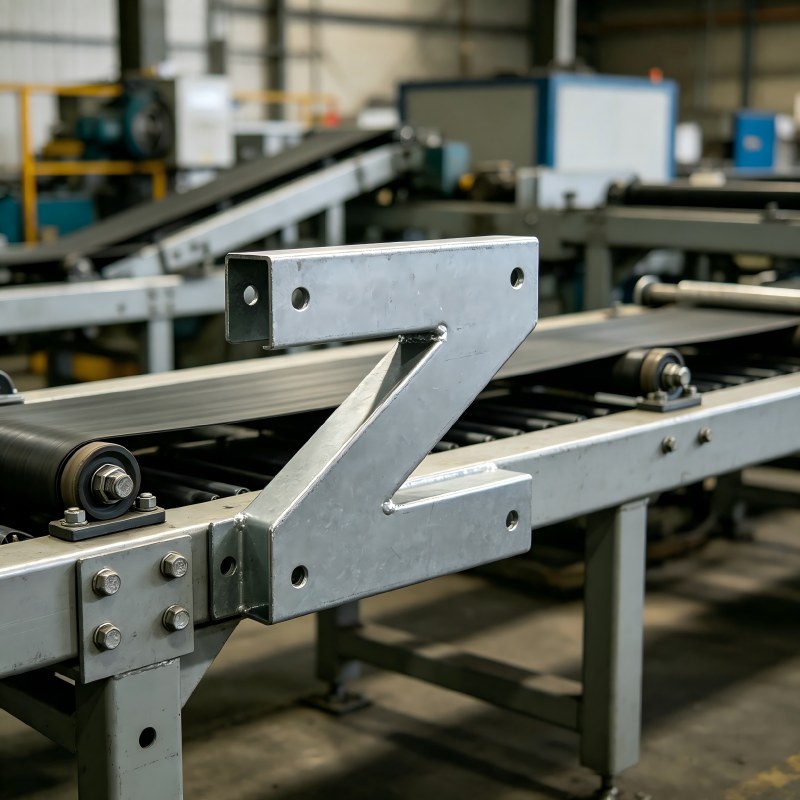

Lingyufab specializes in producing custom bracket parts including heavy-duty structural brackets, automotive mounting brackets, conveyor side rail brackets, solar panel mounting brackets, electrical cabinet support brackets, angle brackets, and custom multi-bend brackets. Our engineering team provides upfront DFM support – including design optimization, load analysis, and cost-reduction recommendations. We offer reverse engineering services for physical samples without existing drawings.

Custom Metal Brackets Applied in Sheet Metal Fabrication

What truly sets Lingyufab apart is our ability to integrate the full spectrum of sheet metal processes – laser cutting, CNC bending, stamping, welding, and surface treatment – into a seamless manufacturing workflow for custom metal brackets. Rather than outsourcing individual steps to multiple vendors, we manage everything in-house, ensuring tighter quality control, faster lead times, and consistent communication throughout the entire production cycle. With our in-house fastener manufacturing, we can pre-install self-clinching nuts, SEMS fasteners, bolts, and nuts directly into your brackets – eliminating external fastener sourcing and reducing supply chain complexity. The result is a streamlined, cost-effective solution that performs reliably in the field.

What is Custom Metal Brackets?

A custom metal bracket is a structural component fabricated from metal sheets or plates through processes including laser cutting, CNC bending, stamping, and welding. It is used to support, mount, connect, or reinforce structural elements in various applications ranging from industrial machinery to automotive assemblies. At Lingyufab, we manufacture brackets strictly to customer 2D prints (PDF, DWG, DXF) and 3D CAD models (STEP, IGES, SolidWorks), ensuring 100% build-to-print execution.

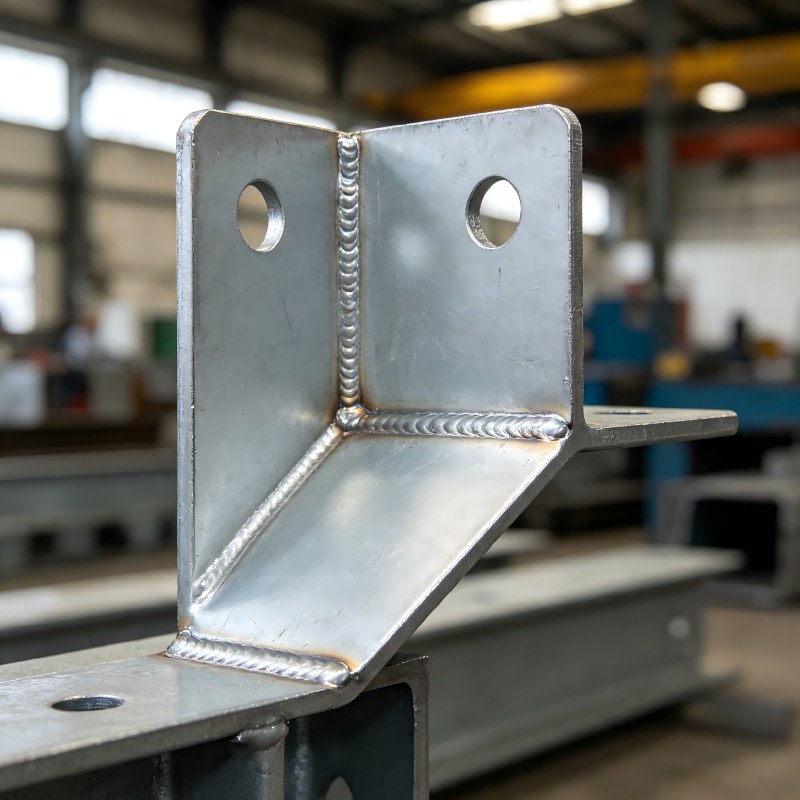

Features of Custom Metal Brackets

High load-bearing capacity with optimized geometry

Customizable shapes: L, Z, U, angle, hat-channel, and complex multi-bend configurations

Compatible with multiple materials and surface treatments for corrosion resistance

Pre-installed fastener options: Self-clinching nuts, SEMS fasteners, threaded studs

Full material traceability with Mill Test Certificates (MTC) for every batch

Cost-effective: 15-20% savings through integrated in-house production

Applications of Custom Metal Brackets

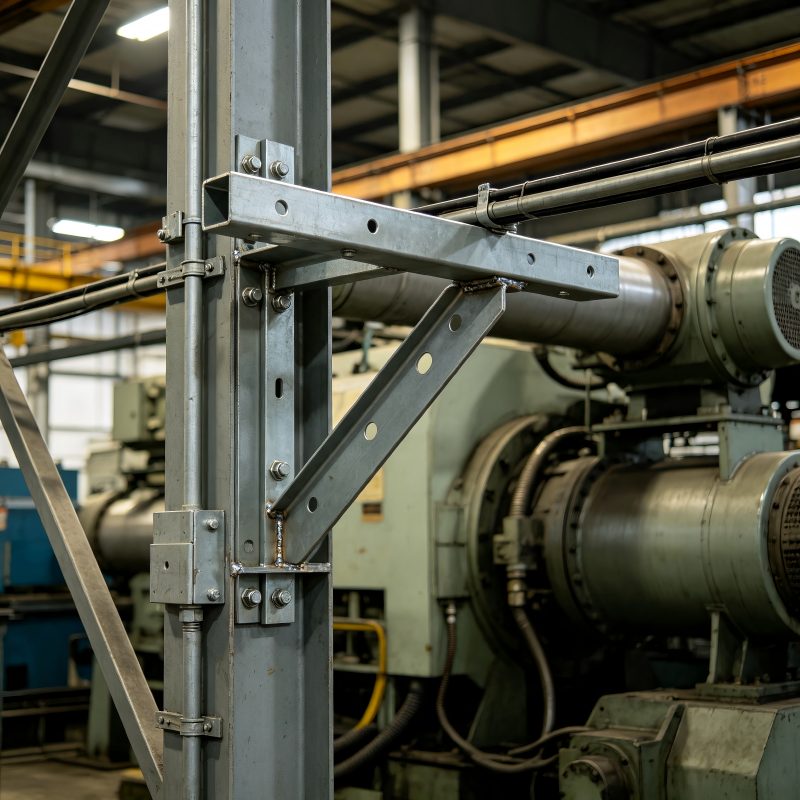

These brackets are deployed in industrial machinery frames, automotive chassis and body mounting, conveyor systems, solar panel mounting structures, electrical cabinet supports, HVAC equipment installation, and construction structural connections. Lingyufab serves OEM clients across automotive, industrial equipment, renewable energy, and commercial construction sectors.

Custom Metal Brackets Guide for Sheet Metal Assembly

When integrating custom metal brackets into an assembly, consider load requirements, mounting orientation, and fastener compatibility. Recommended design practices include: maintaining minimum flange length ≥ 4× material thickness, using consistent bend radii to reduce tooling changes, and adding bend relief notches at corners to prevent tearing. Our engineering team provides assembly drawings and installation recommendations to streamline your final integration.

Custom Metal Brackets Material

Stainless Steel (SUS304, SUS316): Excellent corrosion resistance, high structural strength – ideal for outdoor and medical applications

Aluminum (5052, 6061): Lightweight, high formability, natural corrosion resistance – ideal for aerospace and electronics

Carbon Steel: High strength-to-cost ratio, superior structural rigidity – ideal for industrial machinery

Galvanized Steel: Rust-proof, excellent weather resistance – ideal for outdoor electrical and telecom structures

Copper & Brass: Superior electrical and thermal conductivity – ideal for busbar supports and grounding brackets

Custom Metal Brackets Accuracy

Standard linear tolerance: ±0.13mm | Precision tolerance: ±0.05mm

Bending angle tolerance: ±0.5° with real-time laser compensation

Repeat positioning accuracy: ±0.03mm

Minimum inside bend radius: 1× material thickness

Verification equipment: CMM, 3D optical laser scanners, and in-bend automatic angle sensors

How to Control Quality for Custom Metal Brackets?

01 Incoming Material Control: Verify material thickness and mechanical properties with MTC certificates from approved suppliers

02 In-Process Control: Real-time online inspection following SOPs; automatic angle tracking eliminates tool wear and material deviation

03 Final Inspection: Dimensional verification, surface finish inspection, weld quality assessment

04 Pre-Shipment Control: Final quality review, packaging integrity check, and complete quality documentation – supporting third-party testing upon request

What parts can be manufactured by Custom Metal Brackets?

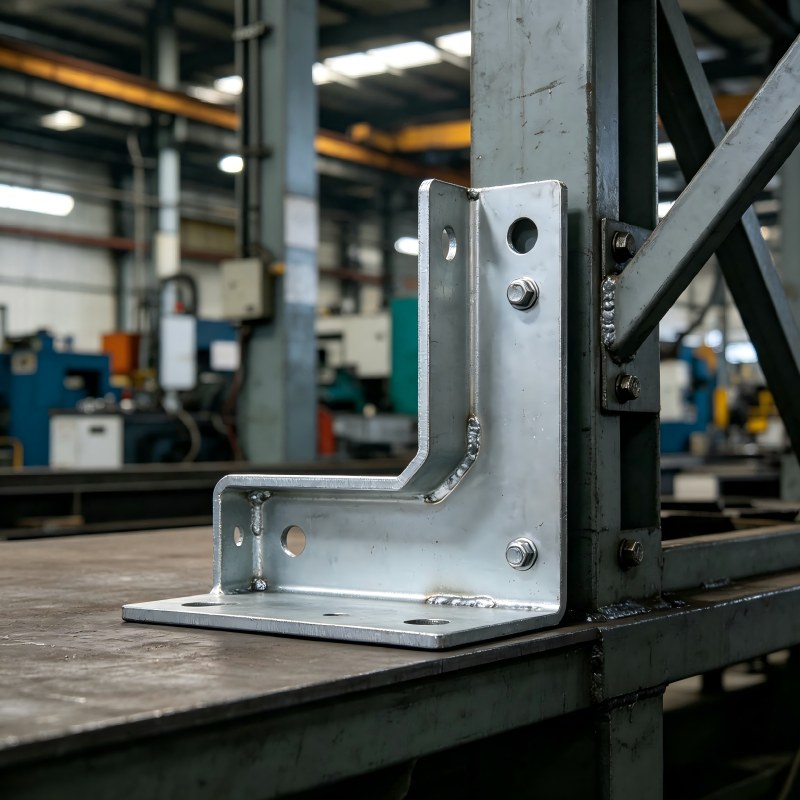

Heavy-duty structural L/Z/U brackets

Automotive mounting brackets and chassis components

Conveyor side rails and support brackets

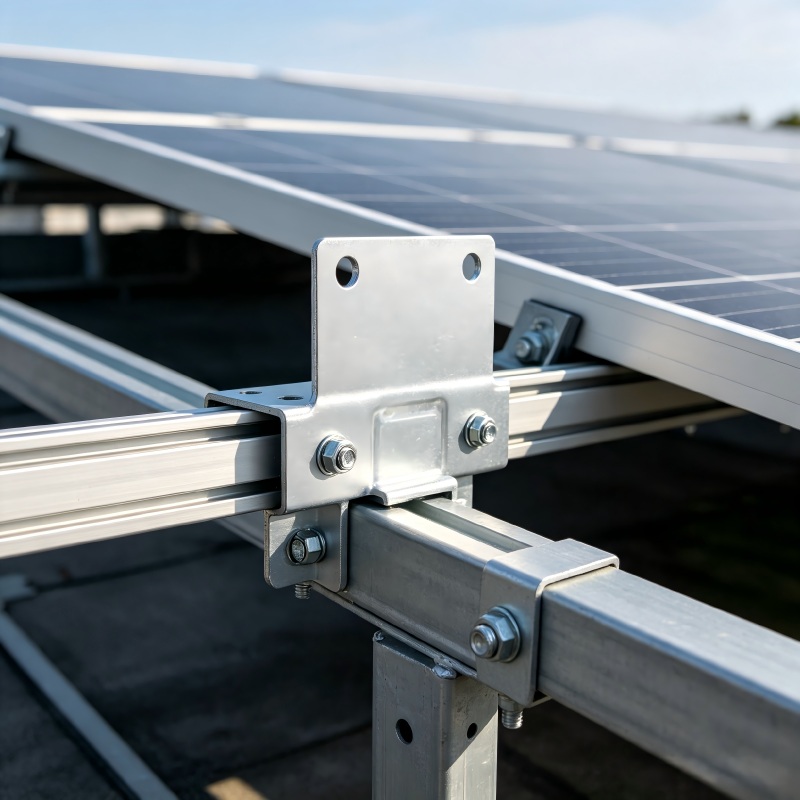

Solar panel mounting structures

Electrical cabinet support brackets

Custom angle brackets and corner braces

Reverse engineering of physical samples without existing drawings

Custom Metal Brackets Manufacturer

Lingyufab (Shanghai Lingyu Industrial Co., Ltd.) is a certified manufacturer established in 2003 with over 20 years of precision fabrication experience. We hold ISO 9001:2015, ISO 14001, and TÜV CE certifications. We are a Mitsubishi Electric certified core supplier. Monthly production exceeds 8,000 units, covering 1-piece prototypes, 100-piece pilot runs, and high-volume mass production. We support OEM and ODM manufacturing with zero MOQ for prototyping.

Custom Metal Brackets FAQ

A: Stainless steel (304/316), aluminum (5052/6061), carbon steel, galvanized steel, copper, and brass.

A: Zero MOQ for prototyping – we support 1-piece samples.

A: Powder coating (any RAL color), zinc plating, anodizing, polishing, and painting.

A: Yes, we offer reverse engineering services for custom metal brackets.

A: 15-20 working days for prototypes, 25-35 days for bulk orders.

A: Yes, every batch includes Mill Test Certificates (MTC) with full material traceability. Third-party testing is also supported.
