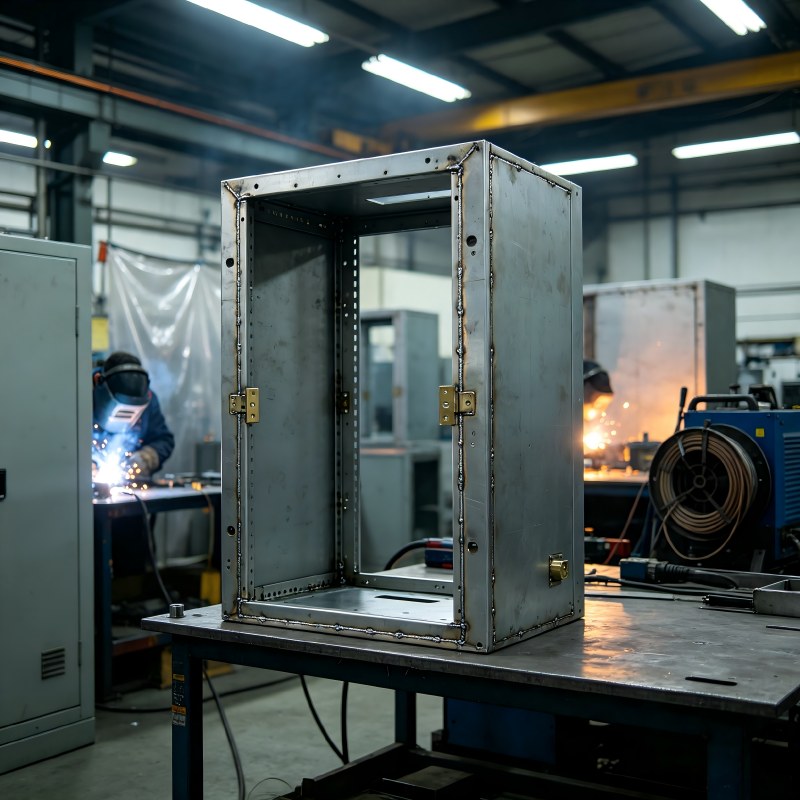

Leading Electrical Cabinet Service Manufacturer

Lingyufab (Shanghai Lingyu Industrial Co., Ltd.), established in 2003, stands out as a premier service manufacturer of electrical cabinets. With over 20 years of experience in precision sheet metal fabrication, we offer comprehensive solutions from 1-piece prototyping to large-scale production. Our facility is equipped with advanced laser cutting systems, CNC bending centers, stamping presses, and cold heading machines. As a Mitsubishi Electric certified core supplier adhering to Japanese quality standards, we serve clients across industrial automation, power distribution, renewable energy, and infrastructure sectors.

China Electrical Cabinet Manufacturer

As a China-based manufacturer located in Shanghai, Lingyufab leverages the region's robust supply chain and skilled workforce to produce high-quality electrical cabinets at competitive prices. We adhere to ISO 9001:2015, ISO 14001, and hold TÜV CE certification. Our in-house production eliminates outsourcing costs, delivering 15 to 20 percent cost savings to customers. We support 1-piece samples, 100-piece pilot runs, and high-volume mass production with monthly output exceeding 8000 units.

Electrical Cabinet Techspecs

Our electrical cabinets are engineered to precise specifications. Materials include stainless steel SUS304 and SUS316, carbon steel, and galvanized steel. Thickness ranges from 1.2mm to 6.0mm depending on structural and environmental requirements. Dimensional tolerances are held to plus or minus 0.05mm for critical features. Protection ratings up to IP66 and NEMA 4 upon request. Surface finishing options include powder coating with any RAL color with RAL7035 as standard, anodizing, and electroplating. Custom features include viewing windows, cable entry glands, DIN rails, mounting plates, and internal partitions. Every batch is backed by Mill Test Certificates ensuring full material traceability.

Custom Electrical Cabinet Parts

Lingyufab specializes in producing custom electrical cabinet parts including wall-mounted cabinets with hinged doors, floor-standing cabinets with removable side panels, stainless steel cabinets for corrosive environments, cabinets with viewing windows for meter reading, cabinets with pre-installed DIN rails and terminal blocks, and cabinets with EMI shielding provisions. Each part is tailored to your equipment mounting requirements, with provisions for cable management, ventilation, and thermal management. Our engineering team provides upfront technical support, including design optimization, sealing analysis, and cost-reduction recommendations. We support reverse engineering services. If you have a physical sample without drawings, we can 3D scan, model, and generate production-ready engineering prints. Whether you need a single prototype or thousands of units, we deliver consistent quality with zero MOQ for prototyping stages.

Electrical Cabinet Applied in Sheet Metal Fabrication

What truly sets Lingyufab apart is our ability to integrate the full spectrum of sheet metal processes, including laser cutting, CNC bending, welding, assembly, powder coating, and surface treatment, into a seamless manufacturing workflow for electrical cabinets. Rather than outsourcing individual steps to multiple vendors, we manage everything in-house, ensuring tighter quality control, faster lead times, and consistent communication throughout the entire production cycle. With our in-house fastener manufacturing, we can pre-install self-clinching nuts, PEM nuts, SEMS fasteners, bolts, and nuts directly into your cabinets, eliminating external fastener sourcing and reducing assembly time on your end. The result is a streamlined, cost-effective solution that performs reliably in the field.

What is Electrical Cabinet?

An electrical cabinet is a protective enclosure fabricated from metal sheets through processes including laser cutting, CNC bending, welding, and powder coating. It is designed to house electrical components such as circuit breakers, contactors, PLCs, drives, and terminal blocks in industrial control and power distribution applications. At Lingyufab, we manufacture cabinets strictly to customer 2D prints in PDF, DWG, and DXF formats and 3D CAD models in STEP, IGES, and SolidWorks formats, ensuring 100 percent build-to-print execution.

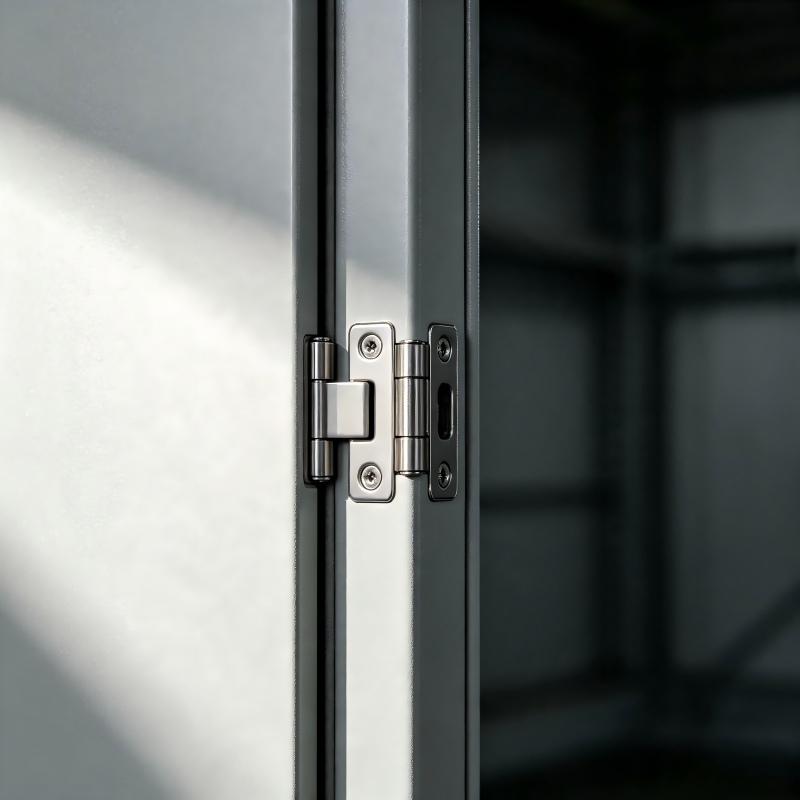

Features of Electrical Cabinets

1. High structural strength with reinforced frames and sealed seams for protection against dust and moisture

2. Protection ratings available up to IP66 and NEMA 4 for harsh and outdoor environments

3. Customizable sizes and configurations including wall-mounted and floor-standing options

4. Multiple surface finish options including powder coating with RAL color selection, stainless steel, and galvanized steel

5. Can incorporate viewing windows, cable entry glands, DIN rails, mounting plates, and internal partitions

6. Integrated fastener solutions with self-clinching nuts and SEMS fasteners pre-installed in-house

7. Full material traceability with Mill Test Certificates for every batch

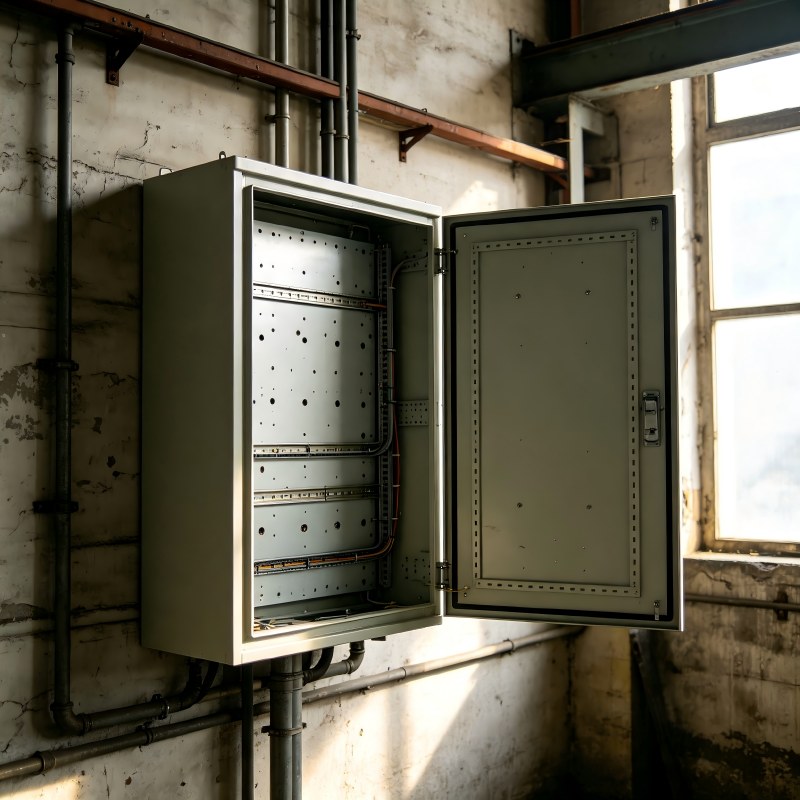

Applications of Electrical Cabinets

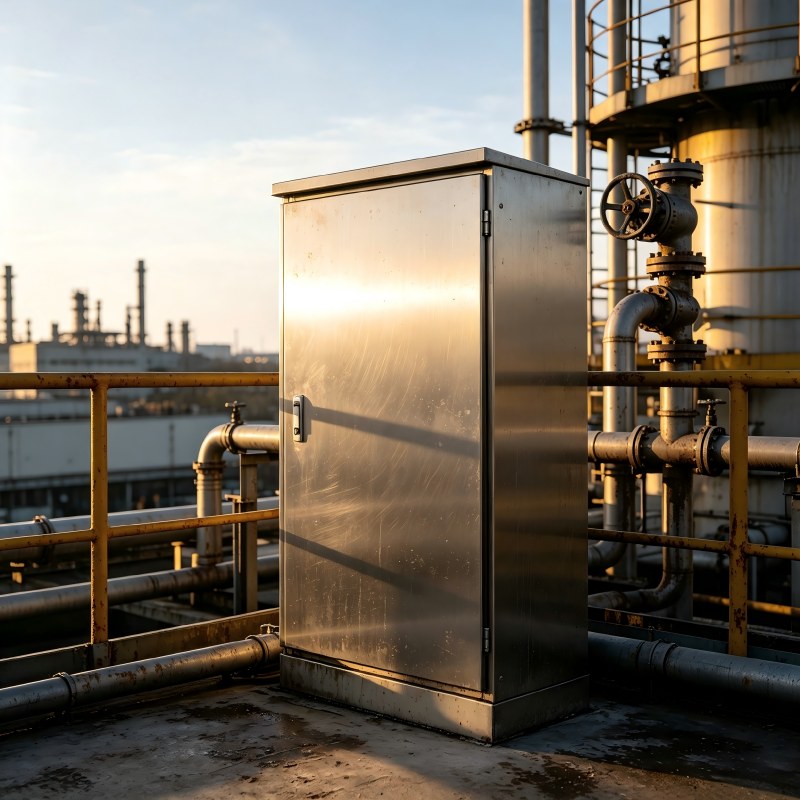

These cabinets are deployed in industrial automation for PLC and drive enclosures, power distribution for switchgear and control panels, renewable energy for solar inverter and battery storage cabinets, infrastructure for traffic control and pumping stations, and commercial buildings for HVAC and lighting control. They protect sensitive electrical components from dust, moisture, impact, and EMI, ensuring reliable operation in demanding conditions. Lingyufab serves OEM clients across industrial, infrastructure, renewable energy, and commercial sectors.

Electrical Cabinet Guide for Sheet Metal Assembly

When integrating an electrical cabinet into an assembly, consider mounting orientation, cable entry points, thermal dissipation, and grounding requirements. Ensure proper sealing to maintain the specified IP or NEMA rating. Recommended design practices include maintaining minimum flange length of at least 4 times material thickness, using consistent bend radii to reduce tooling changes, and adding bend relief notches at corners to prevent tearing. Our engineering team provides assembly drawings, sealing analysis, and installation recommendations to streamline your final integration.

Electrical Cabinet Material

1. Stainless Steel (SUS304, SUS316): Excellent corrosion resistance and high structural strength, ideal for outdoor, marine, and food processing environments

2. Carbon Steel with Powder Coating: High strength-to-cost ratio with durable corrosion protection, ideal for general industrial and indoor applications with RAL7035 as standard

3. Galvanized Steel: Rust-proof with excellent weather resistance, ideal for outdoor telecom and electrical enclosures

4. Aluminum (5052, 6061): Lightweight with natural corrosion resistance, ideal for portable and weight-sensitive applications

5. Copper and Brass: Superior electrical conductivity, ideal for grounding components and busbar connections

Electrical Cabinet Accuracy

1. Standard linear tolerance: plus or minus 0.13mm; Precision tolerance: plus or minus 0.05mm

2. Bending angle tolerance: plus or minus 0.5 degree with real-time laser compensation

3. Hole position accuracy: plus or minus 0.08mm for standard, plus or minus 0.03mm for precision

4. Repeat positioning accuracy: plus or minus 0.03mm

5. Verification equipment includes CMM coordinate measuring machines, 3D optical laser scanners, and in-bend automatic angle sensors

How to Control Quality for Electrical Cabinets?

01. Incoming Material Control: Verify material thickness, flatness, and mechanical properties with MTC certificates from approved suppliers

02. In-Process Control: Real-time online inspection following SOPs with automatic angle tracking to eliminate tool wear and material deviation

03. Final Inspection: Comprehensive dimensional verification, surface finish inspection, weld quality assessment, sealing integrity testing, and coating thickness measurement

04. Pre-Shipment Control: Final quality review, packaging integrity check, and complete quality documentation, supporting third-party testing upon request

What parts can be manufactured by Electrical Cabinets?

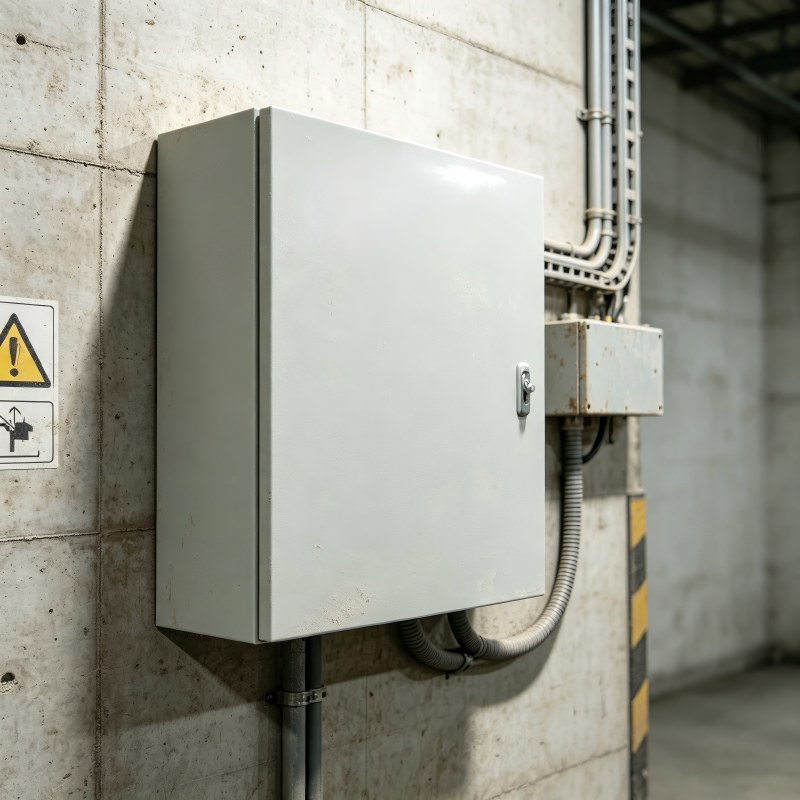

1. Wall-mounted electrical cabinets with hinged doors and lockable handles

2. Floor-standing cabinets with removable side panels and cable entry provisions

3. Stainless steel cabinets for corrosive and wash-down environments

4. Cabinets with viewing windows for meter and display reading

5. Cabinets with pre-installed DIN rails, terminal blocks, and mounting plates

6. Cabinets with EMI shielding and EMC provisions

7. Custom weldments and structural reinforcements

8. Reverse engineering of physical samples without existing drawings

Electrical Cabinet Manufacturer

Lingyufab (Shanghai Lingyu Industrial Co., Ltd.) is a certified manufacturer established in 2003 with over 20 years of precision fabrication experience. As a family-owned business, we hold ISO 9001:2015 for Quality Management, ISO 14001 for Environmental Management, and TÜV CE for Product Safety certifications. We are a Mitsubishi Electric certified core supplier, demonstrating our capability to meet world-class quality and delivery standards. Our monthly production exceeds 8000 units, covering 1-piece prototypes, 100-piece pilot runs, and high-volume mass production. We support OEM and ODM manufacturing with zero MOQ for prototyping, fast response times, and global shipping from our Shanghai facility.

Electrical Cabinet FAQ

A: Yes, we customize any size within our equipment capacity. Simply provide your 2D prints or 3D CAD files in STEP, IGES, or SolidWorks formats for a precise quote.

A: IP54, IP66, and NEMA 3R or NEMA 4 upon request, suitable for both indoor and outdoor applications.

A: Yes, we offer powder coating with any RAL color with RAL7035 as standard, stainless steel, galvanized steel, and electroplating, all completed in-house.

A: Zero MOQ for prototyping. We support 1-piece samples, 100-piece pilot runs, and high-volume mass production.

A: Yes, we can pre-install DIN rails, terminal blocks, mounting plates, and internal partitions during production.

A: 15 to 20 working days for prototypes and 25 to 35 days for bulk orders. Expedited options are available upon request.

A: Yes, every batch includes Mill Test Certificates with full material traceability. Third-party testing is also supported.
