Hex Flange Bolts for Sheet Metal Enclosures

Have you ever struggled with stripped threads in thin sheet metal, or watched a screw head sink into a soft aluminum panel and deform the surface? Or perhaps you have spent countless hours tracking down loose fasteners in equipment that experiences constant vibration? These are among the most common frustrations faced by design engineers, production managers, and field service technicians when assembling sheet metal enclosures, rack cabinets, and electrical panels. The choice of fastener directly affects assembly speed, product reliability, and long-term serviceability.

At Lingyufab, we understand that fasteners are not an afterthought—they are integral to the performance and durability of every sheet metal assembly. With over 20 years of precision manufacturing experience since 2003 and certification as a core supplier for Mitsubishi Electric, our sheet metal fabrication expertise extends to recommending the right fastening solutions for your application. This guide explains why hex flange bolts and nuts are increasingly the preferred choice for sheet metal enclosures, the key advantages they offer, and how to select the right type for your project.

What Are Hex Flange Bolts and Nuts?

A hex flange bolt is a fastener that integrates a circular, washer-like flange directly under the hexagonal head, combining the bolt and washer into a single component. A hex flange nut similarly features a built-in flange at its base, eliminating the need for a separate washer. This integrated design delivers several important benefits for sheet metal applications:

Integrated Flange Eliminates Separate Washers

The flange acts as a built-in washer, spreading the load over a larger surface area. This simplifies assembly, reduces the number of parts to handle, and eliminates the risk of missing washers.

Wider Bearing Surface Protects Thin Materials

The flange diameter is typically 30-50% larger than a standard bolt head, significantly increasing the contact area. This distributes clamping pressure evenly and prevents the fastener from sinking into or damaging thin sheet metal, plastics, or aluminum.

Superior Vibration Resistance

The flange provides increased friction against the mating surface, helping to prevent loosening under shock and vibration. Serrated flange versions feature teeth that bite into the contact surface for even greater anti-loosening performance.

Simplified Inventory and Reduced Assembly Time

Combining the bolt and washer into one component reduces BOM complexity, simplifies kitting, and speeds up installation. Assembly workers handle one part instead of two or three.

Why Hex Flange Fasteners Excel in Sheet Metal Enclosures

Sheet metal enclosures—whether for servers, industrial controls, or electrical panels—present unique fastening challenges that hex flange fasteners are specifically designed to address.

Challenge 1: Thin Material Susceptibility

Thin sheet metal (typically 1.0-2.0mm) is prone to deformation under clamping pressure. Standard bolts with small heads can pull through or create dimples on the surface.

How hex flange fasteners solve it: The wide flange distributes clamping force over a larger area, reducing stress concentration and preventing surface damage. This is particularly important for visible exterior surfaces where appearance matters.

Challenge 2: Vibration in Operating Environments

Enclosures housing fans, motors, or other rotating equipment are subject to constant vibration that can loosen standard fasteners over time.

How hex flange fasteners solve it: The flange increases friction at the joint, and serrated flange versions lock into the mating surface to resist rotational loosening. The flange acts like a built-in lock washer without the additional part.

Challenge 3: Assembly Efficiency at Scale

High-volume production requires fast, consistent assembly with minimal operator error and rework.

How hex flange fasteners solve it: With no separate washers to handle, assembly is faster and less prone to errors. Workers simply pick up one fastener and drive it home. The hex head also allows for quick tool engagement with standard sockets or wrenches.

Challenge 4: Serviceability and Maintenance

Equipment that requires periodic maintenance needs fasteners that can be removed and reinstalled reliably without damaging the enclosure.

How hex flange fasteners solve it: Hex flange bolts and nuts provide reusable threaded connections that withstand repeated assembly and disassembly. The flange protects the surrounding surface during both installation and removal.

Key Applications in Sheet Metal Enclosures

Hex flange fasteners are widely used across industries where sheet metal enclosures are common:

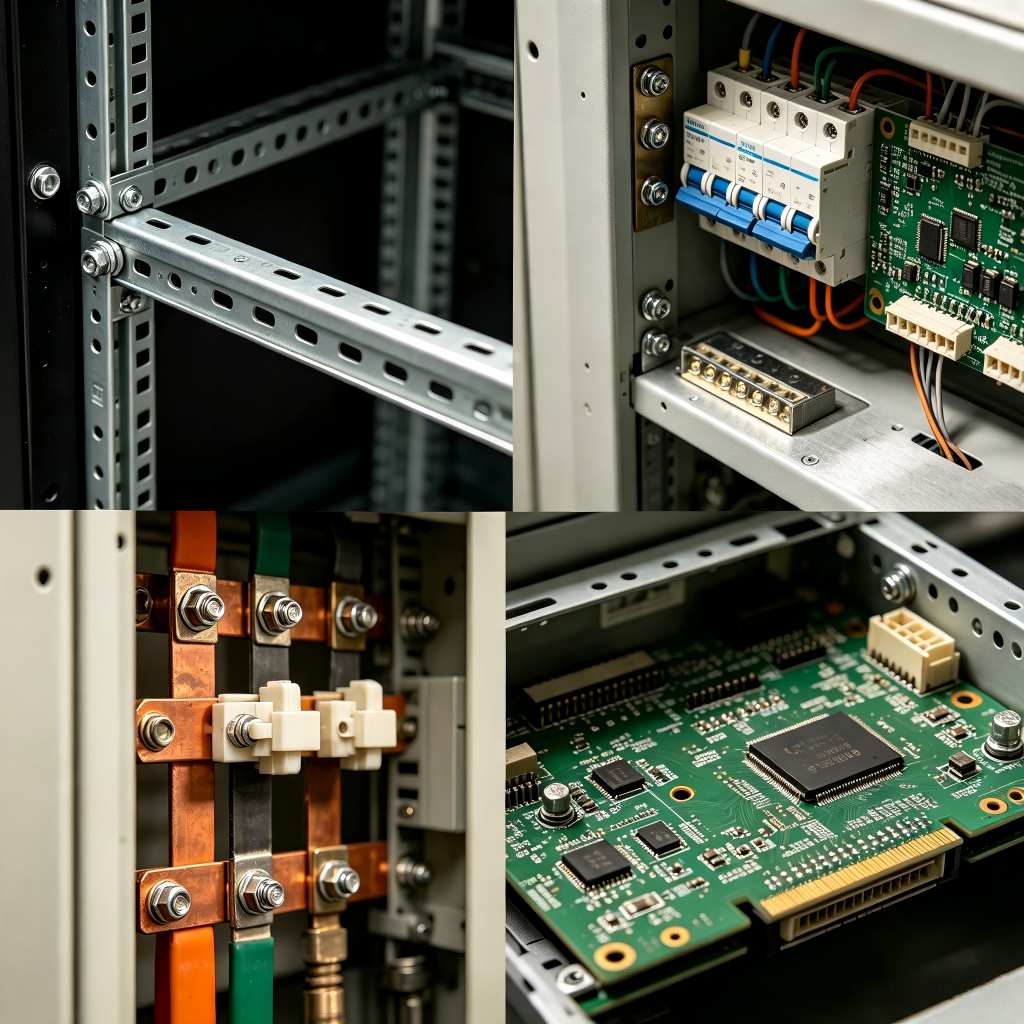

Data Center and Telecom Racks. Server cabinets and network equipment racks require fasteners that provide secure, vibration-resistant connections without damaging thin rack rails or mounting ears. Hex flange bolts are commonly used for rack mounting and panel attachment.

Industrial Control Panels. PLC cabinets, motor control centers, and power distribution enclosures benefit from the reliable, vibration-resistant connections that hex flange fasteners provide.

Electrical Enclosures. Junction boxes, terminal cabinets, and switchgear housings require fasteners that maintain electrical continuity and provide secure, corrosion-resistant connections.

Electronic Equipment Housings. Instrument enclosures, test equipment chassis, and consumer electronics housings benefit from the clean, professional appearance and reliable performance of flange fasteners.

Comparison with Alternative Fastening Methods

Material Selection for Hex Flange Fasteners

Carbon Steel. The most common and cost-effective option. Available in strength grades 8.8, 10.9, and 12.9. Ideal for general industrial applications where corrosion resistance is not a primary concern.

Stainless Steel (304, 316). Provides excellent corrosion resistance for harsh environments, including moisture, chemicals, and outdoor exposure. Suitable for medical, food processing, and marine applications.

Zinc-Plated Steel. Offers moderate corrosion resistance at a lower cost than stainless steel. Suitable for indoor applications where appearance is important.

Surface Finishes. Available finishes include zinc plating, zinc-nickel plating, Dacromet coating, and Geomet coating, each providing different levels of corrosion protection.

Design Considerations for Sheet Metal Enclosures

Specify the correct thread size. Common sizes for sheet metal enclosures range from M4 to M12. Larger sizes provide greater load capacity but require more space.

Choose the appropriate strength grade. Use 8.8 grade for general applications, 10.9 for high-strength requirements, and 12.9 for the most demanding load conditions.

Consider serrated flange options. For applications with significant vibration, serrated flange fasteners provide superior anti-loosening performance.

Account for panel thickness. Ensure the fastener length provides adequate thread engagement—typically at least 3 thread pitches beyond the nut thickness.

Determine whether you need a bolt-nut combination or a bolt alone. For applications where the sheet metal is thick enough to support tapped threads, a bolt alone may be sufficient. For thinner panels, or where the assembly requires access from both sides, a bolt and nut combination provides the strongest and most reliable connection.
