Leading NEMA 3R Junction Box Service Manufacturer

Lingyufab (Shanghai Lingyu Industrial Co., Ltd.), established in 2003, stands out as a premier service manufacturer of NEMA 3R junction boxes. With over 20 years of experience in precision sheet metal fabrication, we offer comprehensive solutions from 1-piece prototyping to large-scale production. Our facility is equipped with advanced laser cutting systems, CNC bending centers, stamping presses, and cold heading machines. As a Mitsubishi Electric certified core supplier adhering to Japanese quality standards, we serve clients across commercial construction, industrial facilities, utility infrastructure, and renewable energy sectors.

China NEMA 3R Junction Box Manufacturer

As a China-based manufacturer located in Shanghai, Lingyufab leverages the region's robust supply chain and skilled workforce to produce high-quality NEMA 3R junction boxes at competitive prices. We adhere to ISO 9001:2015, ISO 14001, and hold TÜV CE certification. Our in-house production eliminates outsourcing costs, delivering 15 to 20 percent cost savings to customers. We support 1-piece samples, 100-piece pilot runs, and high-volume mass production with monthly output exceeding 8000 units.

NEMA 3R Junction Box Techspecs

Our NEMA 3R junction boxes are engineered to precise specifications. Materials include stainless steel SUS304 and SUS316, carbon steel, and galvanized steel. Thickness ranges from 0.8mm to 3.0mm depending on application and environmental requirements. Dimensional tolerances are held to plus or minus 0.05mm for critical features. Standard features include rainproof hoods, drip shields, and sealed cable entry ports. Surface finishing options include powder coating with any RAL color, stainless steel, and galvanized steel. Designed to meet NEMA 3R standards for outdoor applications. Every batch is backed by Mill Test Certificates ensuring full material traceability.

Custom NEMA 3R Junction Box Parts

Lingyufab specializes in producing custom NEMA 3R junction box parts including standard junction boxes with rainproof hoods, multi-entry boxes with multiple cable ports, stainless steel boxes for corrosive environments, boxes with lockable handles and hasps, and flush-mount boxes for recessed wall installation. Each part is tailored to your wiring and installation requirements, with provisions for cable entry, sealing, and mounting. Our engineering team provides upfront technical support, including design optimization and cost-reduction recommendations. We support reverse engineering services. If you have a physical sample without drawings, we can 3D scan, model, and generate production-ready engineering prints. Whether you need a single prototype or thousands of units, we deliver consistent quality with zero MOQ for prototyping stages.

NEMA 3R Junction Box Applied in Sheet Metal Fabrication

What truly sets Lingyufab apart is our ability to integrate the full spectrum of sheet metal processes, including laser cutting, CNC bending, welding, assembly, powder coating, and surface treatment, into a seamless manufacturing workflow for NEMA 3R junction boxes. Rather than outsourcing individual steps to multiple vendors, we manage everything in-house, ensuring tighter quality control, faster lead times, and consistent communication throughout the entire production cycle. With our in-house fastener manufacturing, we can pre-install self-clinching nuts, ground studs, and mounting brackets directly into your boxes, eliminating external sourcing and reducing assembly time on your end. The result is a streamlined, cost-effective solution that performs reliably in the field.

What is NEMA 3R Junction Box?

A NEMA 3R junction box is a weatherproof protective enclosure fabricated from metal sheets through processes including laser cutting, CNC bending, welding, and powder coating. It is designed to house electrical connections, splices, and terminations in outdoor applications where protection from rain, snow, and sleet is required. At Lingyufab, we manufacture NEMA 3R junction boxes strictly to customer 2D prints in PDF, DWG, and DXF formats and 3D CAD models in STEP, IGES, and SolidWorks formats, ensuring 100 percent build-to-print execution.

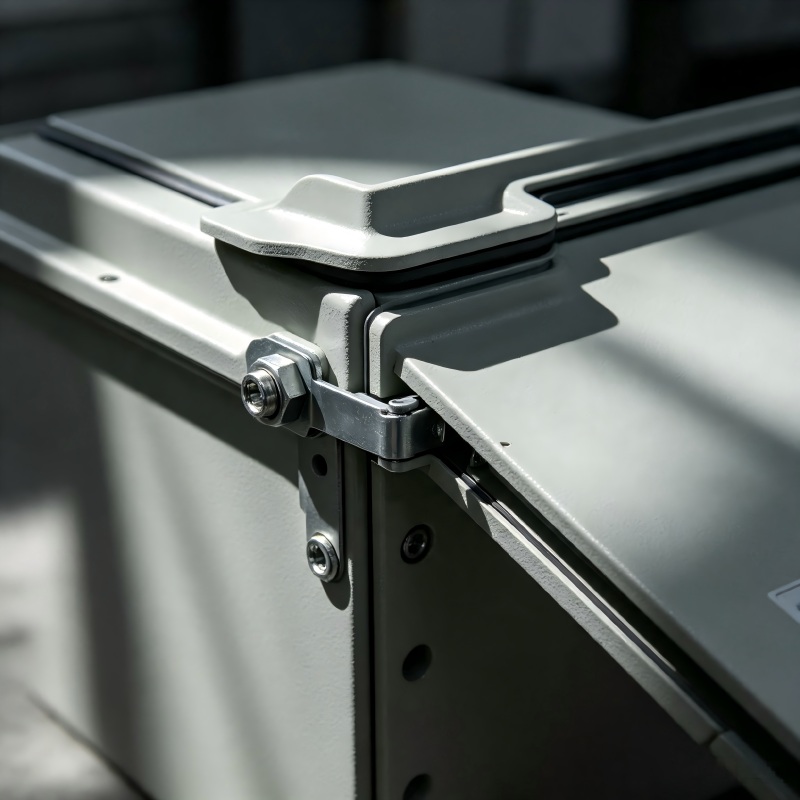

Features of NEMA 3R Junction Boxes

1. Rainproof and sleet-resistant design with protective hoods and drip shields

2. Multiple material options including stainless steel, carbon steel with powder coating, and galvanized steel

3. Sealed cable entry ports with compression glands for weatherproof connections

4. Customizable sizes and configurations for various wiring requirements

5. Lockable handles and hasps for security and tamper resistance

6. Pre-installed grounding studs and internal mounting plates

7. Full material traceability with Mill Test Certificates for every batch

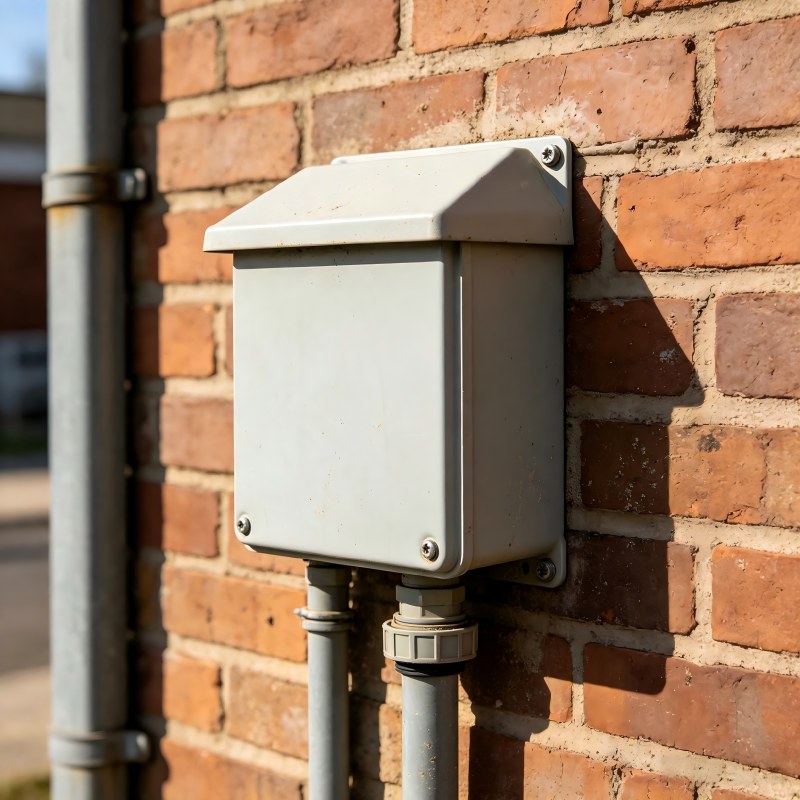

Applications of NEMA 3R Junction Boxes

These junction boxes are deployed in commercial buildings for outdoor lighting and power connections, industrial facilities for equipment and machinery wiring, utility infrastructure for distribution and metering, telecommunications for outdoor equipment connections, and renewable energy systems for solar and wind power installations. They protect electrical connections from rain, snow, sleet, and moisture, ensuring reliable operation in outdoor conditions. Lingyufab serves OEM clients across construction, industrial, utility, and renewable energy sectors.

NEMA 3R Junction Box Guide for Sheet Metal Assembly

When integrating a NEMA 3R junction box into an assembly, consider mounting orientation for proper drainage, cable entry and sealing, and accessibility for future maintenance. Ensure drip shields and hoods are properly positioned to shed water. Recommended design practices include maintaining minimum flange length of at least 4 times material thickness, using consistent bend radii to reduce tooling changes, and adding bend relief notches at corners to prevent tearing. Our engineering team provides assembly drawings, sealing recommendations, and installation guidelines to streamline your final integration.

NEMA 3R Junction Box Material

1. Stainless Steel (SUS304, SUS316): Excellent corrosion resistance and high structural strength, ideal for coastal, marine, and corrosive environments

2. Carbon Steel with Powder Coating: High strength-to-cost ratio with durable corrosion protection, ideal for general outdoor applications

3. Galvanized Steel: Rust-proof with excellent weather resistance, ideal for utility and infrastructure installations

NEMA 3R Junction Box Accuracy

1. Standard linear tolerance: plus or minus 0.13mm; Precision tolerance: plus or minus 0.05mm

2. Bending angle tolerance: plus or minus 0.5 degree with real-time laser compensation

3. Hole position accuracy: plus or minus 0.08mm for standard, plus or minus 0.03mm for precision

4. Verification equipment includes CMM coordinate measuring machines, 3D optical laser scanners, and in-bend automatic angle sensors

How to Control Quality for NEMA 3R Junction Boxes?

01. Incoming Material Control: Verify material thickness, flatness, and mechanical properties with MTC certificates from approved suppliers

02. In-Process Control: Real-time online inspection following SOPs with automatic angle tracking to eliminate tool wear and material deviation

03. Final Inspection: Comprehensive dimensional verification, surface finish inspection, weld quality assessment, sealing integrity testing, and rainproof performance verification

04. Pre-Shipment Control: Final quality review, packaging integrity check, and complete quality documentation, supporting third-party testing upon request

What parts can be manufactured by NEMA 3R Junction Boxes?

1. Standard NEMA 3R junction boxes with rainproof hoods

2. Multi-entry boxes with multiple cable ports and sealing glands

3. Stainless steel boxes for corrosive and coastal environments

4. Boxes with lockable handles and security hasps

5. Flush-mount boxes for recessed wall installation

6. Custom mounting brackets and installation hardware

7. Pre-installed grounding studs and internal mounting plates

8. Reverse engineering of physical samples without existing drawings

NEMA 3R Junction Box Manufacturer

Lingyufab (Shanghai Lingyu Industrial Co., Ltd.) is a certified manufacturer established in 2003 with over 20 years of precision fabrication experience. As a family-owned business, we hold ISO 9001:2015 for Quality Management, ISO 14001 for Environmental Management, and TÜV CE for Product Safety certifications. We are a Mitsubishi Electric certified core supplier, demonstrating our capability to meet world-class quality and delivery standards. Our monthly production exceeds 8000 units, covering 1-piece prototypes, 100-piece pilot runs, and high-volume mass production. We support OEM and ODM manufacturing with zero MOQ for prototyping, fast response times, and global shipping from our Shanghai facility.

NEMA 3R Junction Box FAQ

A: NEMA 3R provides protection against rain, snow, and sleet. It is suitable for outdoor use where weather exposure is a concern.

A: Yes, we customize any size within our equipment capacity. Simply provide your 2D prints or 3D CAD files in STEP, IGES, or SolidWorks formats for a precise quote.

A: Stainless steel (304/316), carbon steel with powder coating, and galvanized steel.

A: Zero MOQ for prototyping. We support 1-piece samples, 100-piece pilot runs, and high-volume mass production.

A: Yes, we can provide cable entry ports with compression glands for weatherproof cable connections.

A: 15 to 20 working days for prototypes and 25 to 35 days for bulk orders. Expedited options are available upon request.

A: Yes, every batch includes Mill Test Certificates with full material traceability. Third-party testing is also supported.
