Lingyufab (Shanghai Lingyu Industrial Co., Ltd.), established in 2003, is a professional sheet metal fabrication and assembly manufacturer specializing in the custom fabrication of heavy-duty hoppers, conical funnels, and transition chutes tailored for global OEMs and equipment integrators. Utilizing high-precision laser cutting, CNC press brake forming, and certified TIG/MIG welding, we transform flat sheet metal into highly accurate 3D containment structures. Our comprehensive in-house capabilities allow us to manage the entire production cycle—from engineering and flat pattern development to complete welded assemblies—guaranteeing strict dimensional tolerances, rapid lead times, and reliable performance across various industrial sectors.

The operational efficiency of a containment structure heavily relies on its engineered geometry and fabrication specifications to ensure continuous, uninterrupted material flow.

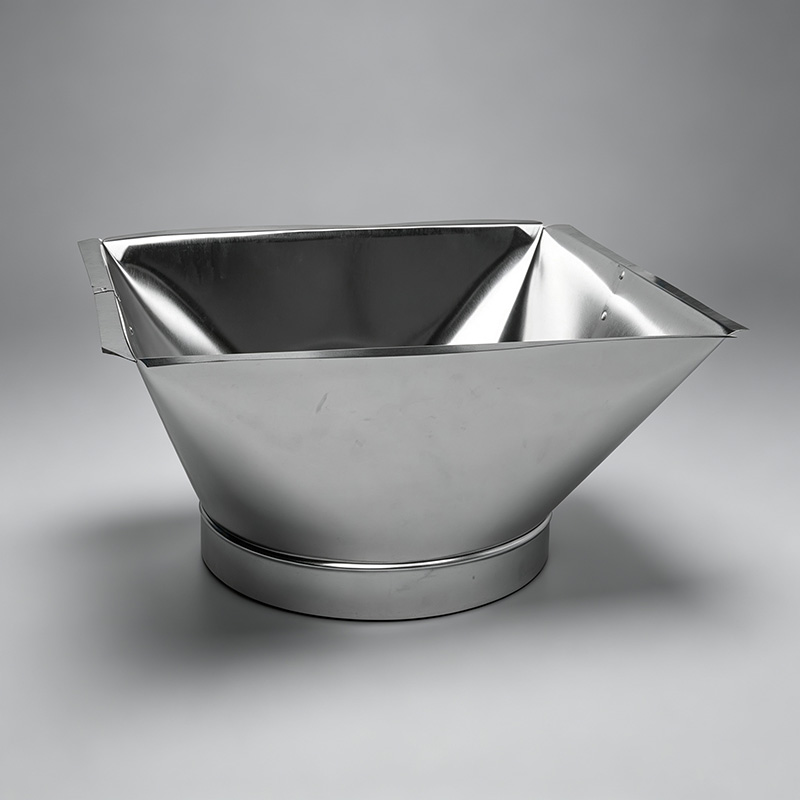

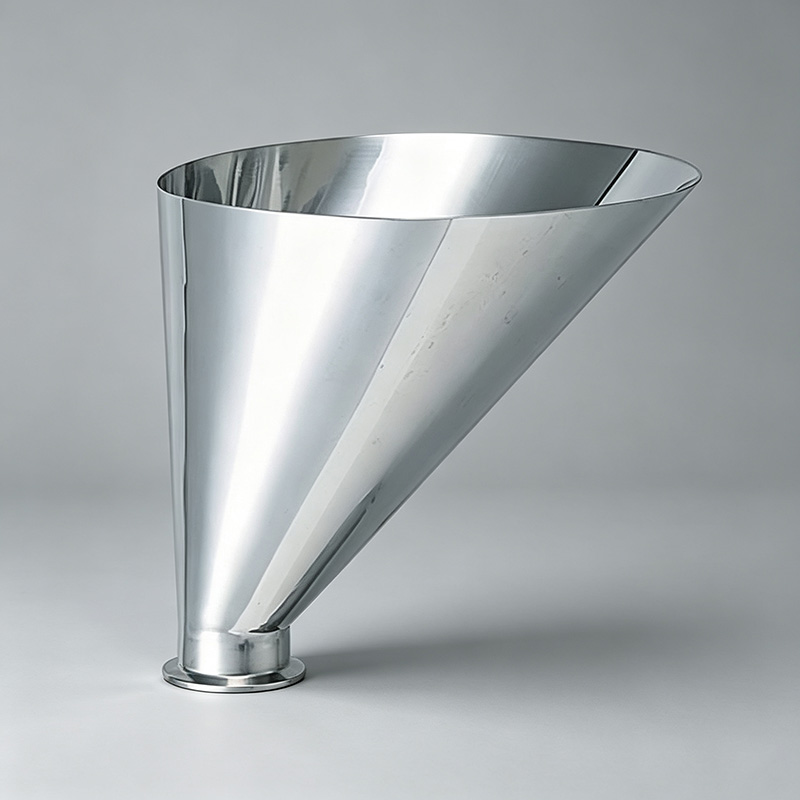

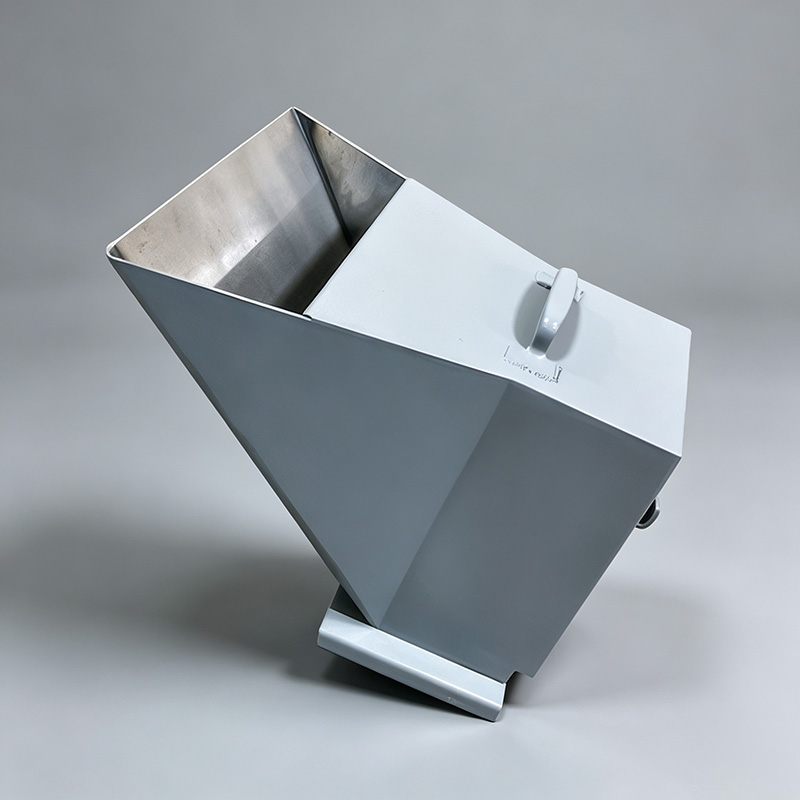

Industrial material handling processes rarely rely on off-the-shelf solutions, which is why we produce highly specialized Custom Sheet Metal Hopper / Funnel parts engineered to integrate seamlessly into existing machinery footprints. We manufacture asymmetrical hoppers, square-to-round transition funnels, and eccentric cones designed specifically for restricted spatial environments. Additionally, these customized containment units can be augmented with fully welded mounting flanges, heavy-duty reinforcing gussets, internal flow baffles, and safety grates. Whether the project requires a specialized pharmaceutical dosing funnel with sanitary fittings or a rugged abrasive aggregate hopper fitted with exterior vibration mounts, our engineering team ensures every component aligns flawlessly with your processing equipment.

Within the broader scope of industrial manufacturing, the Sheet Metal Hopper / Funnel represents a critical intersection of precision metal forming and advanced welding techniques. Applying these components in sheet metal fabrication requires meticulous 3D CAD modeling and flat-pattern calculation to ensure the segmented cone or pyramidal panels align perfectly prior to welding. The fabrication process utilizes specialized plate rolling machines and multi-axis press brakes to shape the complex curved surfaces, followed by precision jigging to hold the geometric tolerances intact during thermal joining. Ultimately, these fabricated structures serve as the vital gravity-fed transitional nodes in complex sheet metal assemblies, seamlessly linking bulk storage silos to downstream processing equipment in agricultural, chemical, plastic extrusion, and automated packaging facilities.

A Sheet Metal Hopper / Funnel is a custom-fabricated industrial containment and transitional structure designed to temporarily store and gravity-feed bulk materials, powders, or liquids. Acting as a critical bridge between storage silos and processing machinery, these components utilize sloped conical, pyramidal, or asymmetrical geometries to ensure a consistent, controlled flow of materials without bridging, rat-holing, or clogging. They are typically engineered to match the specific angle of repose for the material being handled, ensuring optimal discharge rates. Proper design minimizes material degradation and dust generation during the transfer process. By customizing the inlet and outlet dimensions, these hoppers seamlessly adapt to existing production line constraints and facility layouts.

Integrating a Sheet Metal Hopper / Funnel into a larger machinery assembly requires careful alignment to distribute load stress and maintain seamless material flow. When assembling, ensure that the hopper's mounting flanges align precisely with the supporting structural frame to prevent mechanical distortion. Utilize appropriate food-grade gaskets or industrial seals at the discharge transition points. For hoppers equipped with bin activators or vibrators, it is crucial to use heavy-duty vibration-damping mounts and flexible collar connections to isolate kinetic movement from the main rigid sheet metal chassis. It is equally important to use calibrated torque wrenches when securing the flange bolts, preventing uneven pressure that could warp the discharge chute. If the hopper is installed outdoors or in high-humidity environments, applying anti-seize compounds to all threaded fasteners will greatly facilitate future maintenance. Proper grounding cables must also be attached during assembly to dissipate static electricity generated by flowing bulk materials.

Specialty alloys like Hastelloy or Duplex stainless steel can be selected for extreme acidic or high-temperature environments. Choosing the right material thickness is critical to balance structural rigidity with overall manufacturing costs.

Precision is paramount when fabricating transition chutes and conical funnels.

Quality control involves rigorous inspection protocols at every fabrication stage.

Advanced sheet metal fabrication allows for the production of a vast array of specialized shapes designed to fit complex machinery footprints.

Since 2003, Lingyufab (Shanghai Lingyu Industrial Co., Ltd.) has served as a trusted OEM partner for premium sheet metal fabrication and assembly. We specialize in engineering and manufacturing high-performance sheet metal hoppers, industrial funnels, and complex material transition chutes for global machinery integrators. By combining state-of-the-art laser cutting and CNC plate rolling with master-level welding and sanitary surface finishing, we deliver custom containment solutions built to your exact flow specifications. Our fully integrated factory capabilities ensure seamless project execution from initial 3D CAD design to the final assembled product, providing our B2B clients with unmatched structural durability, tight geometric tolerances, and accelerated global delivery.
