Leading Terminal Box Service Manufacturer

Lingyufab (Shanghai Lingyu Industrial Co., Ltd.), established in 2003, stands out as a premier service manufacturer of terminal boxes. With over 20 years of experience in precision sheet metal fabrication, we offer comprehensive solutions from 1-piece prototyping to large-scale production. Our facility is equipped with advanced laser cutting systems, CNC bending centers, stamping presses, and cold heading machines. As a Mitsubishi Electric certified core supplier adhering to Japanese quality standards, we serve clients across industrial facilities, building electrical, renewable energy, and marine sectors.

China Terminal Box Manufacturer

As a China-based manufacturer located in Shanghai, Lingyufab leverages the region's robust supply chain and skilled workforce to produce high-quality terminal boxes at competitive prices. We adhere to ISO 9001:2015, ISO 14001, and hold TÜV CE certification. Our in-house production eliminates outsourcing costs, delivering 15 to 20 percent cost savings to customers. We support 1-piece samples, 100-piece pilot runs, and high-volume mass production with monthly output exceeding 8000 units.

Terminal Box Techspecs

Our terminal boxes are engineered to precise specifications. Materials include stainless steel SUS304 and SUS316, carbon steel, and galvanized steel. Thickness ranges from 0.8mm to 3.0mm depending on application requirements. Dimensional tolerances are held to plus or minus 0.05mm for critical features. Standard features include cable entry ports with sealing glands, terminal mounting rails, and grounding studs. Surface finishing options include powder coating with any RAL color, stainless steel, and galvanized steel. Custom features include multiple cable entry configurations, internal terminal layouts, lockable handles, and viewing windows. IP66 rated protection available upon request. Every batch is backed by Mill Test Certificates ensuring full material traceability.

Custom Terminal Box Parts

Lingyufab specializes in producing custom terminal box parts including motor connection boxes with multiple cable entries, equipment junction boxes for power and control wiring, solar junction boxes for photovoltaic installations, explosion-proof terminal boxes for hazardous locations, and custom junction boxes for OEM electrical equipment. Each part is tailored to your cable termination requirements, with provisions for cable entry, terminal mounting, and accessibility. Our engineering team provides upfront technical support, including design optimization and cost-reduction recommendations. We support reverse engineering services. If you have a physical sample without drawings, we can 3D scan, model, and generate production-ready engineering prints. Whether you need a single prototype or thousands of units, we deliver consistent quality with zero MOQ for prototyping stages.

Terminal Box Applied in Sheet Metal Fabrication

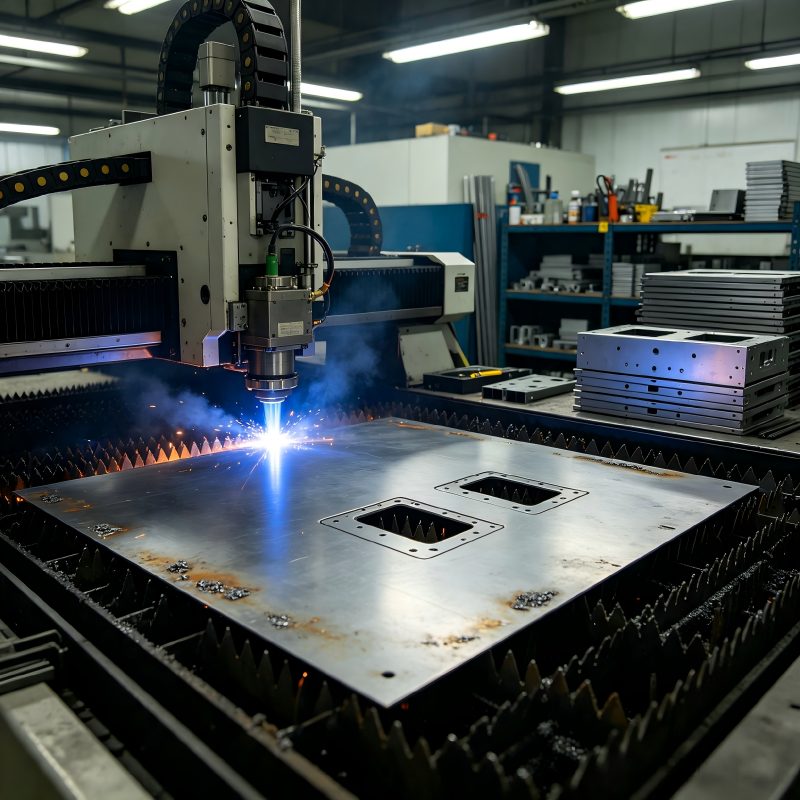

What truly sets Lingyufab apart is our ability to integrate the full spectrum of sheet metal processes, including laser cutting, CNC bending, welding, assembly, powder coating, and surface treatment, into a seamless manufacturing workflow for terminal boxes. Rather than outsourcing individual steps to multiple vendors, we manage everything in-house, ensuring tighter quality control, faster lead times, and consistent communication throughout the entire production cycle. With our in-house fastener manufacturing, we can pre-install grounding studs, terminal mounting rails, and sealing gland mounting hardware directly into your boxes, eliminating external sourcing and reducing assembly time on your end. The result is a streamlined, cost-effective solution that performs reliably in the field.

What is Terminal Box?

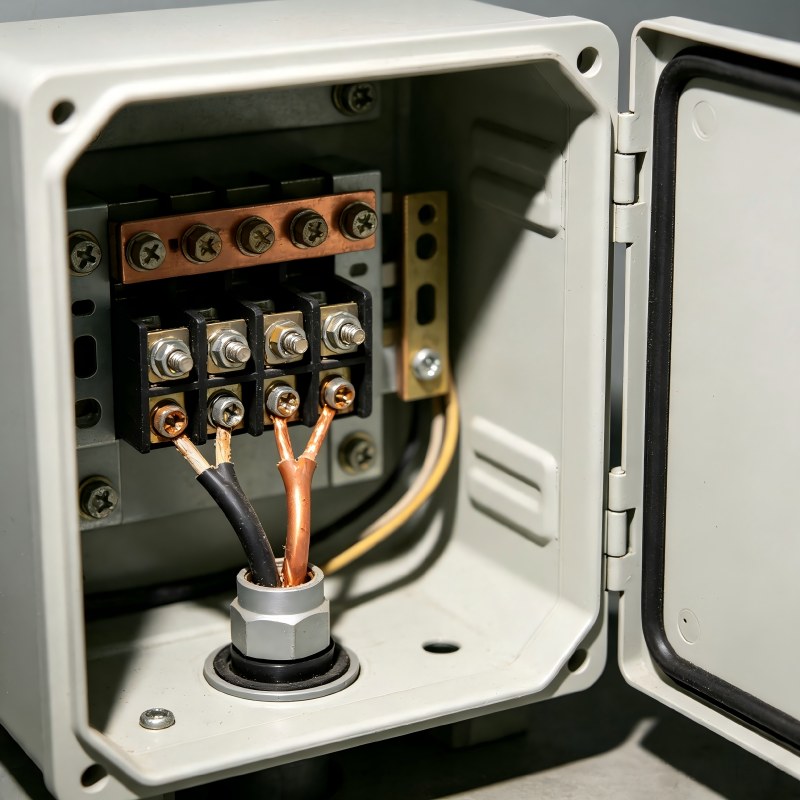

A terminal box is a protective enclosure fabricated from metal sheets through processes including laser cutting, CNC bending, welding, and powder coating. It is designed to house cable terminations, splices, and electrical connections in industrial, building, and utility applications. At Lingyufab, we manufacture terminal boxes strictly to customer 2D prints in PDF, DWG, and DXF formats and 3D CAD models in STEP, IGES, and SolidWorks formats, ensuring 100 percent build-to-print execution.

Features of Terminal Boxes

1. High structural strength with sealed seams and corrosion-resistant finishes

2. Multiple cable entry options with sealing gland compatibility

3. Internal terminal mounting rails and grounding provisions

4. Multiple material options including stainless steel and powder-coated carbon steel

5. IP66 rated protection available upon request

6. Lockable handles and viewing windows for operator access

7. Full material traceability with Mill Test Certificates for every batch

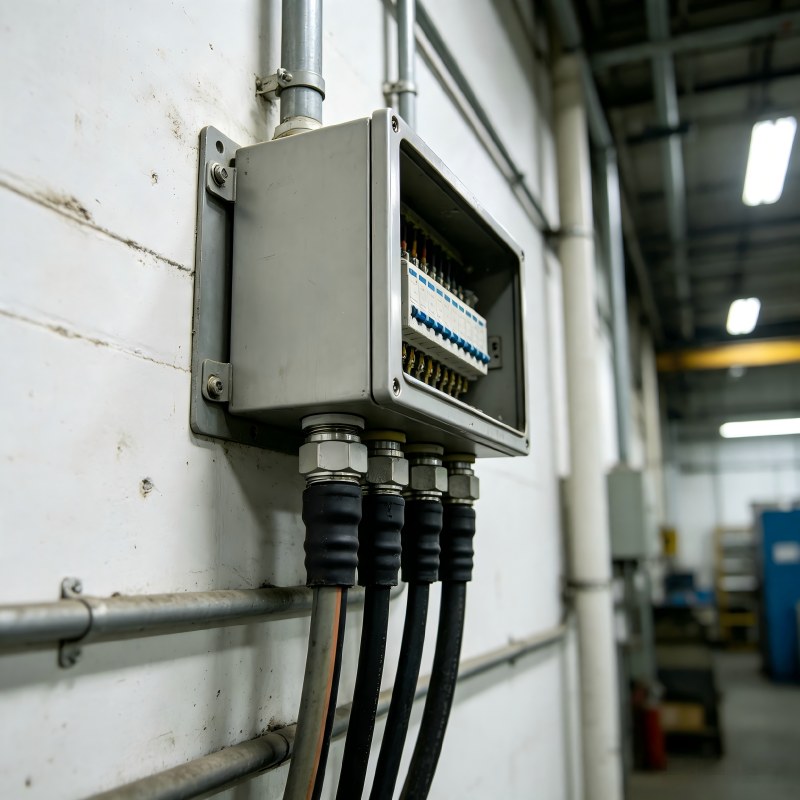

Applications of Terminal Boxes

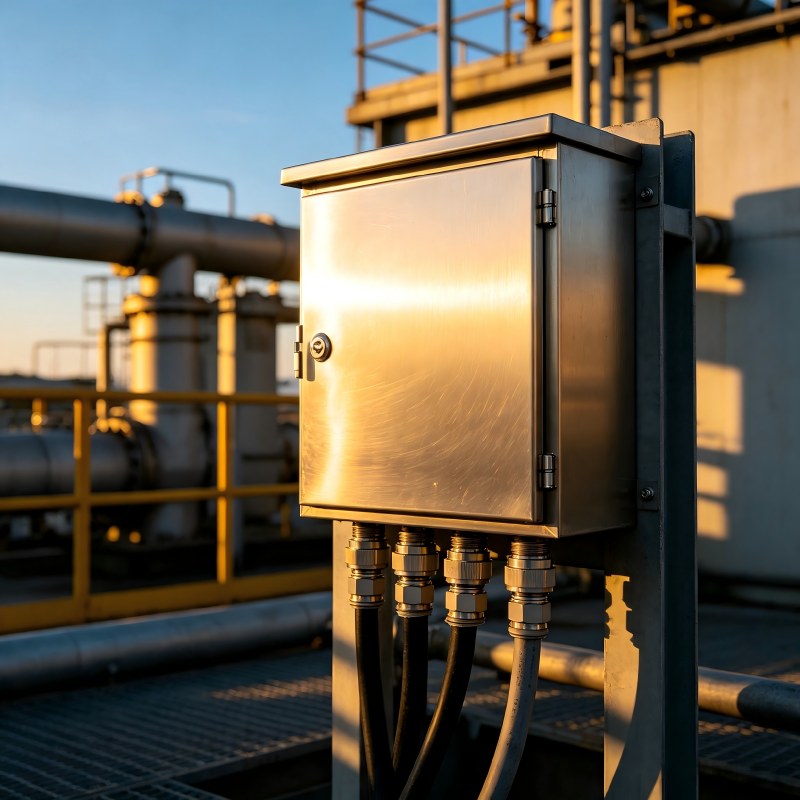

These terminal boxes are deployed in industrial facilities for motor and equipment wiring, building electrical systems for power distribution connections, renewable energy for solar and wind cable termination, marine and offshore for corrosion-resistant connections, and hazardous locations with explosion-proof requirements. They provide secure, accessible termination points for electrical cables in demanding conditions. Lingyufab serves OEM clients across industrial, building, renewable energy, and marine sectors.

Terminal Box Guide for Sheet Metal Assembly

When integrating a terminal box into an assembly, consider cable entry and routing, accessibility for maintenance, grounding requirements for safety, and sealing integrity for environmental protection. Ensure proper cable strain relief and terminal spacing to prevent short circuits. Recommended design practices include maintaining minimum flange length of at least 4 times material thickness, using consistent bend radii, and adding bend relief notches at corners to prevent tearing. Our engineering team provides assembly drawings, cable layout recommendations, and installation guidelines to streamline your final integration.

Terminal Box Material

1. Stainless Steel (SUS304, SUS316): Excellent corrosion resistance, ideal for marine, offshore, and corrosive industrial environments

2. Carbon Steel with Powder Coating: High strength with durable coating, ideal for general industrial applications with RAL color selection

3. Galvanized Steel: Rust-proof with good weather resistance, ideal for utility and outdoor installations

4. Aluminum (5052, 6061): Lightweight with natural corrosion resistance, ideal for portable and weight-sensitive applications

Terminal Box Accuracy

1. Standard linear tolerance: plus or minus 0.13mm; Precision tolerance: plus or minus 0.05mm

2. Bending angle tolerance: plus or minus 0.5 degree with real-time laser compensation

3. Cable entry hole position accuracy: plus or minus 0.08mm for standard, plus or minus 0.05mm for precision

4. Verification equipment includes CMM coordinate measuring machines and 3D optical laser scanners

How to Control Quality for Terminal Boxes?

01. Incoming Material Control: Verify material thickness, flatness, and mechanical properties with MTC certificates

02. In-Process Control: Real-time online inspection following SOPs with automatic angle tracking and dimensional verification

03. Final Inspection: Comprehensive dimensional verification, surface finish inspection, weld quality assessment, cable entry hole accuracy testing, and sealing integrity verification

04. Pre-Shipment Control: Final quality review, packaging integrity check, and complete quality documentation

What parts can be manufactured by Terminal Boxes?

1. Motor connection boxes with multiple cable entries

2. Equipment junction boxes for power and control wiring

3. Solar junction boxes for photovoltaic installations

4. Explosion-proof terminal boxes for hazardous locations

5. Custom junction boxes for OEM electrical equipment

6. Pre-installed terminal rails and grounding hardware

7. Reverse engineering of physical samples without existing drawings

Terminal Box Manufacturer

Lingyufab (Shanghai Lingyu Industrial Co., Ltd.) is a certified manufacturer established in 2003 with over 20 years of precision fabrication experience. We hold ISO 9001:2015, ISO 14001, and TÜV CE certifications. We are a Mitsubishi Electric certified core supplier. Monthly production exceeds 8000 units, covering 1-piece prototypes, 100-piece pilot runs, and high-volume mass production. We support OEM and ODM manufacturing with zero MOQ for prototyping.

Terminal Box FAQ

A: IP54, IP66, and IP67 ratings available upon request, suitable for both indoor and outdoor applications.

A: Yes, we can provide custom cable entry hole positions, sizes, and quantities based on your specifications.

A: Stainless steel (304/316), carbon steel with powder coating, galvanized steel, and aluminum.

A: Zero MOQ for prototyping. We support 1-piece samples, 100-piece pilot runs, and high-volume mass production.

A: Yes, we can pre-install terminal mounting rails and grounding studs during production.

A: 15 to 20 working days for prototypes and 25 to 35 days for bulk orders. Expedited options available.

A: Yes, every batch includes Mill Test Certificates with full material traceability. Third-party testing is also supported.
