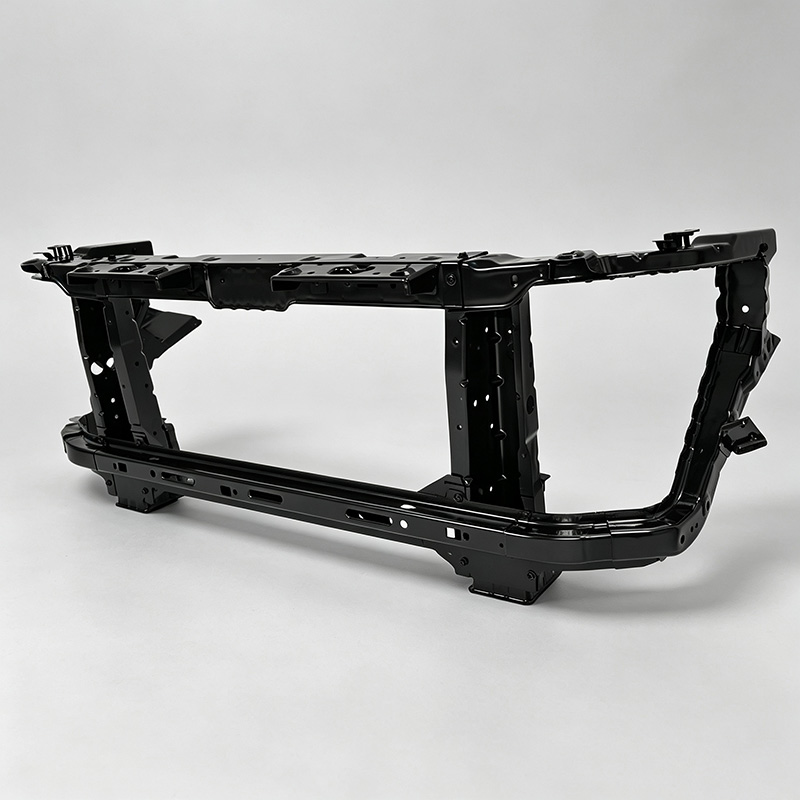

Radiator Support
Leading Radiator Support Manufacturer
Lingyufab (Shanghai Lingyu Industrial Co., Ltd.) has been manufacturing radiator supports since 2003, and over the years we have learned that these parts rarely fail for the same reason twice. Some fail from corrosion, others from collision damage, and some simply because the original design was never strong enough for the application. That experience shapes how we approach each project: we look at where the part will be installed, what loads it will see, and what conditions it will face before deciding on material and structure. Our Shanghai facility handles laser cutting, CNC bending, stamping, welding, and surface treatment in-house, so we can control the details that matter. As a Mitsubishi Electric certified core supplier, we serve automotive, commercial vehicle, and industrial equipment customers who need radiator supports that fit correctly and hold up over time.
Lingyufab (Shanghai Lingyu Industrial Co., Ltd.) is a sheet metal fabrication and assembly manufacturer, established in 2003. Radiator supports are one of the main product categories within our broader sheet metal manufacturing business. The city's industrial base gives us access to a steady supply of steel and a workforce that understands metal fabrication, which helps keep costs predictable and quality consistent. We follow ISO 9001:2015, and because everything stays in-house, customers avoid the layered markups that come with outsourcing—typically saving 15 to 20 percent. Order sizes range from a single sample to 100-piece pilot runs to ongoing mass production, with current monthly output exceeding 5,000 units.
A radiator support is a structural part, so its specifications are shaped by the vehicle or equipment it goes into.
Radiator supports vary widely depending on the vehicle platform and application, so Lingyufab treats each one as a custom project rather than a catalog item. We produce:
We also handle custom hole patterns, mounting tabs, gussets, and reinforcement plates based on your drawings or samples. Our engineering team can assist with design optimization and cost reduction, and reverse engineering is available if only a physical sample exists. Prototyping starts at zero MOQ.
Radiator supports bring together several sheet metal processes that need to work in sequence. Laser cutting shapes the flat blank, stamping forms the channels and mounting features, CNC bending handles secondary forming, welding joins multi-piece assemblies and reinforcement plates, and surface treatment prepares the part for its working environment. At Lingyufab, all of these steps happen under one roof rather than being handed off between vendors, which keeps tolerances tight and lead times predictable. Because fasteners are also made in-house, mounting hardware can be pre-installed before the radiator supports ship, reducing assembly work at the customer's end.

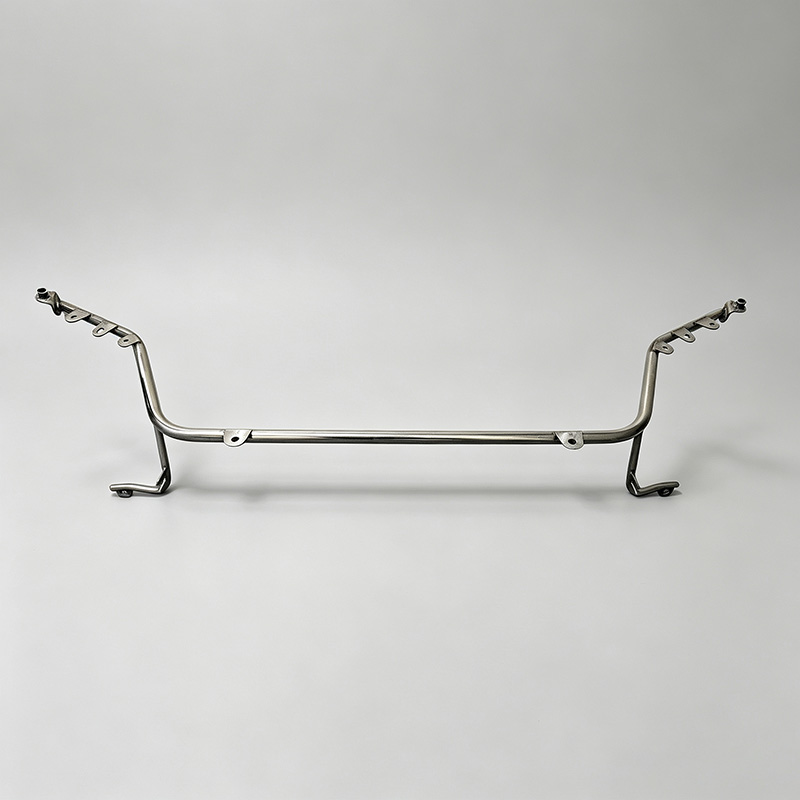

Features of Radiator Support
A radiator support has one job above all else: hold the radiator in place and keep the front end of the vehicle from flexing. How well it does that depends on a few design choices. Material is the first consideration—stamped steel offers a good balance of strength and cost, tubular steel reduces weight while maintaining rigidity, and stainless steel adds corrosion resistance where needed. The mounting points for the radiator, condenser, and front-end sheet metal must be positioned accurately, since even a small deviation can cause alignment problems during assembly. Reinforced brackets at the frame rail connection points help distribute loads and prevent cracking over time. Surface treatment—whether powder coating, galvanizing, or e-coating—determines how well the part resists rust in the long run. And because radiator supports are structural, full material traceability through Mill Test Certificates comes standard with every batch.

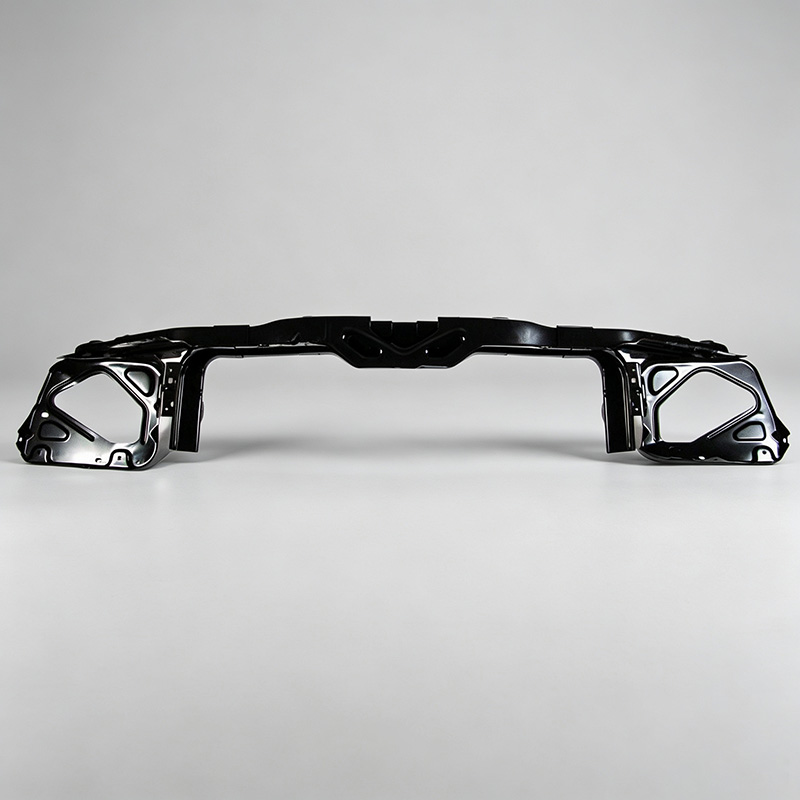

Applications of Radiator Support
Radiator supports are found wherever a vehicle or piece of equipment needs its cooling system securely mounted and its front-end structure reinforced. In passenger cars and light trucks, they hold the radiator, condenser, and front grille assembly in place while adding rigidity to the front of the chassis. Commercial vehicles and heavy-duty trucks use heavier-gauge supports that can withstand vibration, road shock, and years of exposure to the elements. Performance and off-road vehicles often use tubular or reinforced supports to save weight while maintaining strength under hard cornering and impact. Industrial equipment and agricultural machinery rely on radiator supports to keep cooling systems stable in dusty, high-vibration environments. Lingyufab supports 1-piece prototyping, 100-piece pilot runs, and high-volume mass production with monthly delivery exceeding 5,000 units.
A radiator support is the structural frame at the front of a vehicle that holds the radiator, condenser, and front-end sheet metal in place. It is not just a mounting bracket—it ties the front frame rails together, adds rigidity to the front end, and plays a role in crash energy absorption. Radiator supports are typically stamped from steel or fabricated from tubular steel, and are found on passenger cars, trucks, performance vehicles, and industrial equipment. A properly designed support keeps the cooling system aligned and stable under vibration, heat cycling, and road shock.
Lingyufab supports 1-piece prototyping, 100-piece pilot runs, and high-volume mass production with monthly delivery exceeding 5,000 units.
Producing a radiator support that fits and performs correctly comes down to a few practical points:
Thickness typically ranges from 1.0mm to 3.0mm depending on the load and rigidity required.
A radiator support that does not fit properly can cause alignment problems throughout the front end, so dimensional accuracy matters.
These standards are maintained through laser cutting, stamping, CNC bending, and welding equipment, along with in-process inspection and final quality checks.
Quality control covers the full production sequence:
Lingyufab produces a range of radiator support and related components:
Lingyufab (Shanghai Lingyu Industrial Co., Ltd.) is a professional sheet metal fabrication and assembly manufacturer, established in 2003. Radiator supports are one of the main product categories within our broader sheet metal manufacturing business.
Our Shanghai facility handles laser cutting, CNC bending, stamping, welding, and surface treatment in-house, giving us full control over dimensional accuracy and finish quality. We are ISO 9001:2015 certified and support projects ranging from a single prototype to 100-piece pilot runs to high-volume production exceeding 5,000 units per month. In-house fastener manufacturing allows us to pre-install mounting hardware before shipment, reducing assembly work for our customers.
As a Mitsubishi Electric certified core supplier, we serve automotive, commercial vehicle, and industrial equipment customers with reliable, cost-effective radiator support solutions. With competitive pricing, 15-20% cost savings through in-house production, and full material traceability with MTC for every batch, Lingyufab delivers dependable radiator support solutions for customers worldwide.
